KANO™ HD 510
CNC Plasma Cutting
Premium cutting performance with a smaller foot-print and a lower cost. KANO™ HD 510 may be configured with a Hypertherm Powermax air plasma, MAXPRO200 oxygen plasma or an XPR high-definition plasma system. An oxy-fuel torch is also available. KANO™ HD 510 is the right machine for any shop. Installation takes hours – not days. Start increasing your shop’s production today!
-
1500 IPM
RAPID TRAVERSE -
UNITIZED
BUILD DESIGN -
2 TABLE
STYLES
Select the feature you'd like to learn about or slide through them below.
Operator Control Station (OCS)
The KANO™ HD 510 Operator Control Station is configured with the Hypertherm® EDGE Connect CNC running Microsoft® Win10 OS, 19” touch screen, customized iPark™ SoftOpCon, ProNest® CNC CAM software and embedded expertise from Hypertherm® SureCut™ technology. The OCS may be attached to either the front left or right corner of the machine frame.
Steel Construction
KANO™ HD 510 gantry beam, end trucks or machine frame are fabricated from steel plate with added internal steel reinforcements. Linear ways and precision gear rack are attached directly to machined surfaces. Clearance between the bottom of the gantry and the table slats is 7.25”.
Torch Lifter
The KANO™ HD 510 tool carriage is configured with a ball screw lifter powered by an AC servo motor to deliver 600 IPM vertical travel. The lifter includes a magnetic collision mount receptacle that can accept either a plasma or an oxy-fuel cutting torch. The torch that is not in use is parked on a second magnetic collision mount receptacle on the side of the tool carriage.
Cable Activated E-Stops

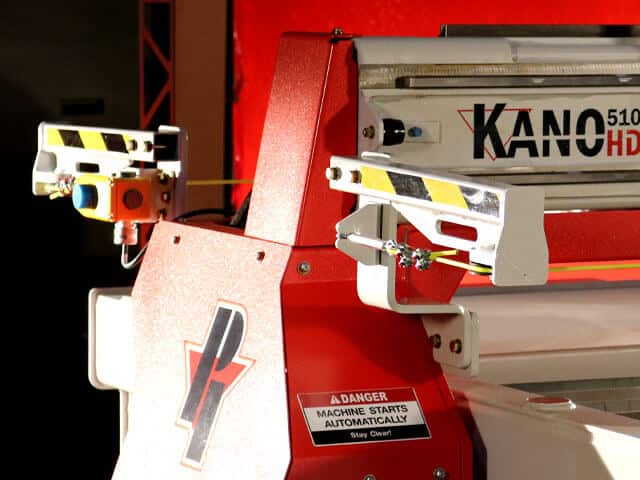

KANO™ HD 510 CNC cutting machines are configured with Cable Activated E-Stops on the front and rear of the gantry beam. If the cable is pulled, the machine is placed in an "E-Stop" state which inhibits machine motion and the cutting process operation. The CNC displays an "Emergency Stop Active" warning message. To return the machine to normal operation, the operator presses a reset button on the gantry arm and a "System Enable” soft key on the machine Operator Control Station.
Tucked Rails
KANO™ HD 510 machine frames extend over the linear ways and gear rack to eliminate the possibility of damage during loading and unloading the table. The gear rack teeth are facing down to protect them from debris.
Cutting Tables, Slat Frames and Slag Trays
Select either a water table or a zoned down draft air table. Both table designs include slats set into a lift out frame with removable slag trays below.
Watch Videos
Key Features
-
Easy to Use
The easy-to-use Hypertherm EDGE Connect CNC control includes Hypertherm SureCut Technology with embedded expertise to deliver True Hole, Power Pierce, Rapid Part, Remote Help, Optimized Consumable Life and Sampled Arc Voltage.
-
Fast Machine Movements
Powerful AC servo motors and low back lash gear boxes deliver laser interferometer verified ISO 230-2 machine tool accuracy and positioning speeds to 1,500 IPM.
-
Hypertherm SureCut Technology
KANO™ HD 510 delivers True Hole, Power Pierce, Rapid Part, Remote Help, Optimized Consumable Life, and Sampled Arc Voltage. Hypertherm products are designed to work together seamlessly, making it easy to optimize cut quality, parts per hour and cost per part.
-
Cutting Table Options
The standard water table with adjustable water level offers rapid water level adjustment for part retrieval and table cleaning. The optional zoned down draft air table is configured with mechanically activated zones. Both table designs include slats set into lift out frames and removable slag trays below.
-
Big Purchase Decision. Big Company Support.
Have confidence in your investment! Park Industries® has been building highly precise and accurate machines since 1953. We specialize in building robust machinery and delivering the best customer service in industry. Park Industries® ensures that customers receive the support they need, 24 hours a day, 7 days per week. KANO™ HD 510 is ready to start cutting within a few hours of arrival. On-site installation and training with 24/7 service support. Park Industries® ProGuard™ preventive maintenance is also available.
-
Standard Features
- Cutting area 60″ x 120″
- Laser interferometer verified ISO 230-2 accuracy
- 1,500 IPM positioning speed
- Hypertherm® EDGE Connect CNC with EtherCAT interface
- Swivel mounted operator control station
- AC servo motors and precision gearboxes
- Absolute encoders
- Cable surround E-stop system for safety
- Water table with adjustable water level
- Slag trays for easy table clean-out
- Hypertherm® Powermax 125 cutting to 1″
- AC servo driven ball screw torch lifter
- Cross-Hair laser pointer
-
Options
- Hypertherm® Powermax plasma systems
- Hypertherm® MAXPRO200 oxygen plasma system
- Hypertherm® XPR170 & XPR300 plasma systems
- Oxyfuel cutting torch and gas manifold
- Zoned down draft table with mechanical zone activation
- Dust collectors with ducting and installation
- On-screen camera alignment tool
- Hypertherm® ProNest programming modules
- Plasma and oxy-fuel torch consumables
- Gas regulators for plasma or oxy-fuel cutting
- Power supply or gas console stands
- Air prep system for compressed air
- Air driven air pressure booster
- Park Industries® ProGuard maintenance program
Specifications
| Select up to 3 models to compare key specs |
KANO™ HD 510View Layout Drawing |
|
|---|---|---|
| Effective Cutting Area (L x W) | 5' x 10' | |
| Max Plate Thickness | 2" | |
| Oxy-Fuel Torch Option | Yes | |
| Machine Speed (Max) | 1500" per minute | |
| Acceleration (Max) | 61.7 inch/sec2 (160 mG) in 0.5 seconds | |
| Table | Water Table, Zoned Down Draft Air Table | |
| Plasma Systems | Hypertherm MAXPRO200, Hypertherm PowerMax, Hypertherm XPR170, Hypertherm XPR300 | |
| Bi-Directional Positional Accuracy per ISO 230-2 (60” x 60” area, laser verified) | +/- .004 Non-compensated | |
| Bi-Directional Repeatability per ISO 230-2 (60” x 60” area, laser verified) | +/- .001” Non-compensated | |
| Weight | 6,500 lb | |
| Electrical Requirements (KANO w/ TracKlean Table) | NA | |
| Electrical Requirements (KANO w/ Water or Air Table) | 230VAC 1 phase 14 Amps (Full load) | |
| Electrical Requirements (Plasma System Only) | Plasma system dependent, refer to mfg. manual |
