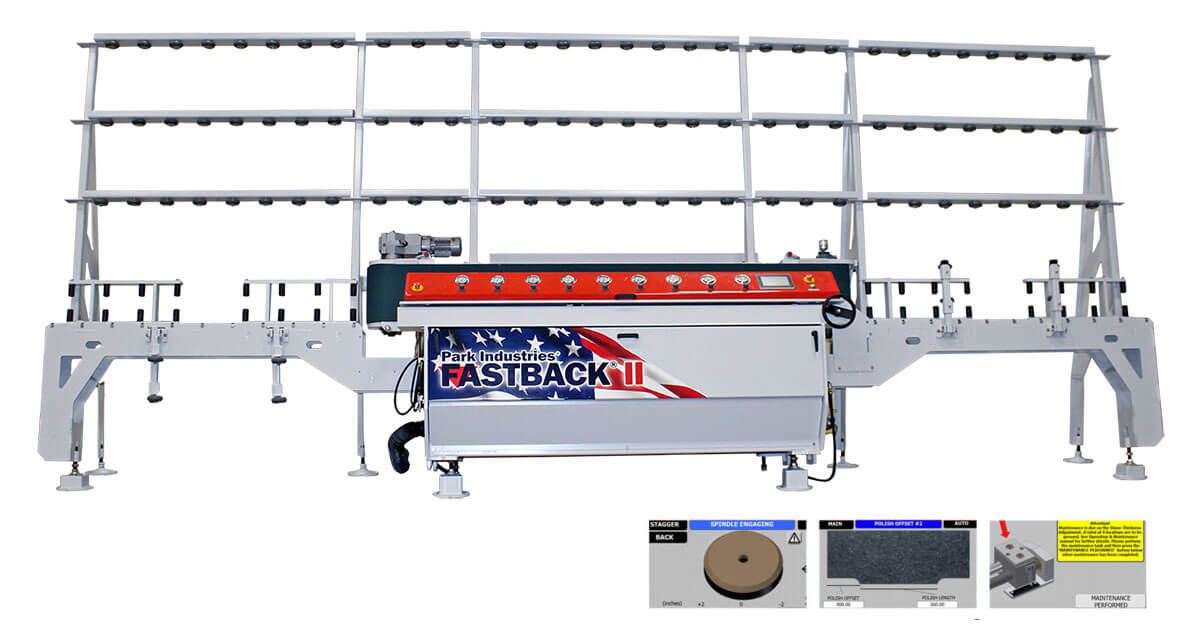

FASTBACK® II
Flat-Edge Polisher
The FASTBACK® II will edge, polish and chamfer backsplash, vanities, and countertops in one single pass. Get exceptional, quality edges at a rate up to 65 IPM and pieces up to 96″ tall with the SlabBACK Support System. This proven workhorse of the stone & granite countertop fabrication industry is the only of its kind completely built in the USA.
SPINDLE
STAGGER65 IPM
SPEEDSINGLE-PASS
POLISHING
Choose your Region
Please choose your region and fabrication type below.
Select the feature you'd like to learn about or slide through them below.

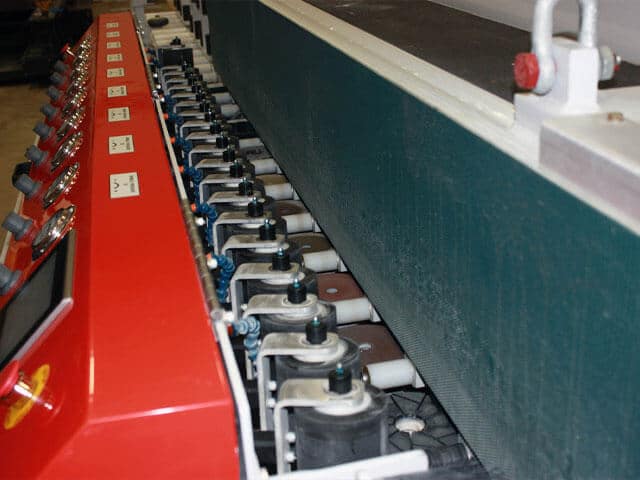

NINE SPINDLE POSITIONS
The FASTBACK® II incorporates nine spindle positions to create the best polish on the market.
Spindle #1: Edge Gauging Spindle
Spindle #2 through #7: Polishing spindles
Spindle #8 through #9: Chamfer Spindles set at 45 degrees

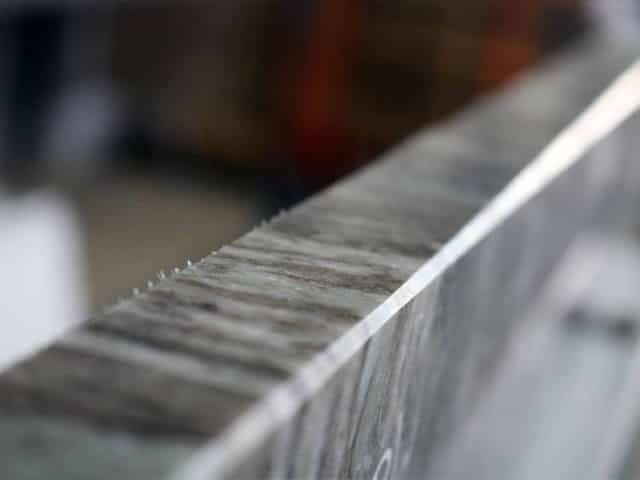

FAST, Single-Pass Polishing
Precision polishing at a rate of up to 65" IPM finishes backsplash, vanities, and countertops in a single pass. This machine is an efficiency game changer!

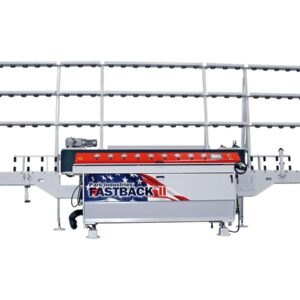

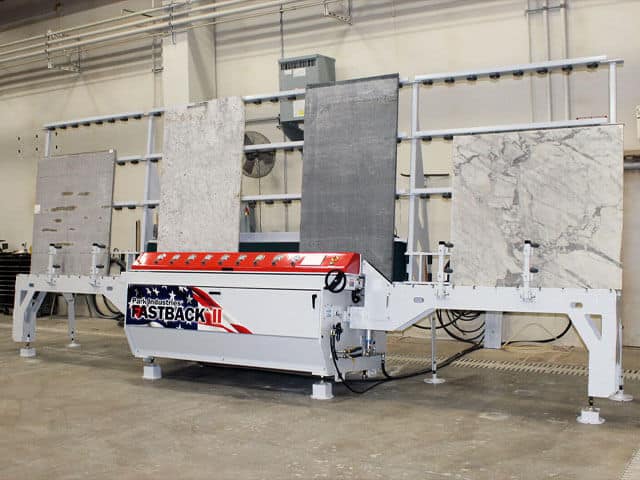

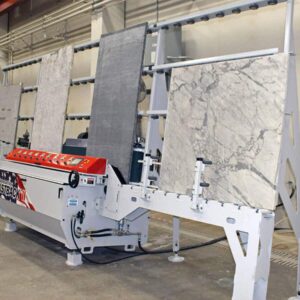

SlabBack Supports (Optional)
Support large material pieces with Peace of Mind® that your operation is running safely and efficiently. Secured to the machine and floor, the SlabBACK can manage large pieces up to 96 inches and can be retrofitted to all FASTBACK® models with a 10-foot ceiling height requirement.

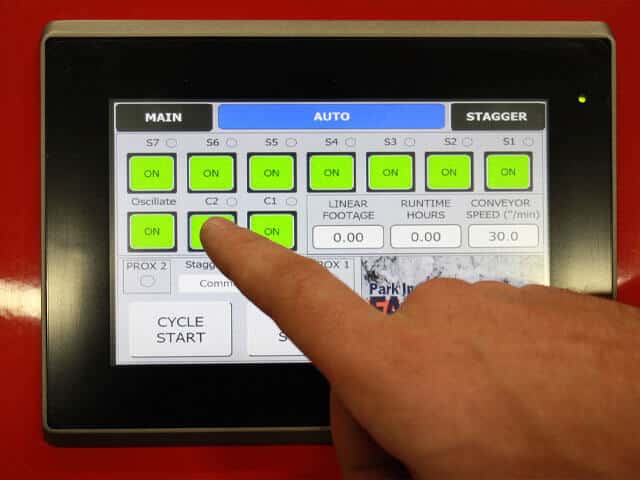

INTUITIVE TOUCH SCREEN WITH MULTIPLE FEATURES
The FASTBACK® II is the only machine in its class to offer a programmable touch-screen operator interface for fast, simple machine controls. It is utilized for unique, useful features like Spindle Stagger, Polish Offset Pro (for Euroseam Pieces), Tool Life Monitoring, and more.
Heavy Duty Infeed/Outfeed Conveyors
Rugged conveyors with rollers and guide fence. The FASTBACK® II’s 7’ feed and discharge conveyors are the heaviest and most robust of any machine in its class to offer.

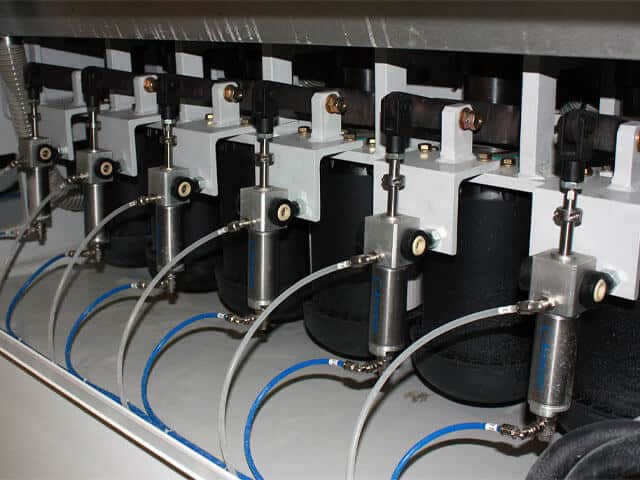

Exclusive ArmorShield Protection
A variety of components on the FASTBACK® II, including the conveyor drums and spindles, are impregnated with Park’s exclusive ArmorShield Protection. The ArmorShield Protection is a process that protects critical machine parts by enhancing corrosion and wear resistance.
Exclusive Spindle Stagger
Park Industries® exclusive Spindle Stagger feature allows the operator to adjust the point at which each tool engages and disengages with the leading and trailing ends of the material. This programmable spindle engagement & disengagement feature ensures consistent and total polish end-to-end, essential for tightly nested slab layouts.

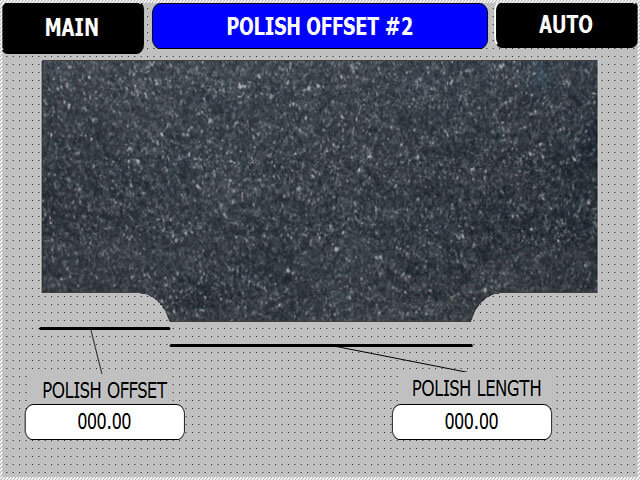

Polish Offset Pro
The FASTBACK® II allows you to offset the point at which the spindles engage and/or disengage with the material. This allows the operator to run Euro Seam pieces through the machine.

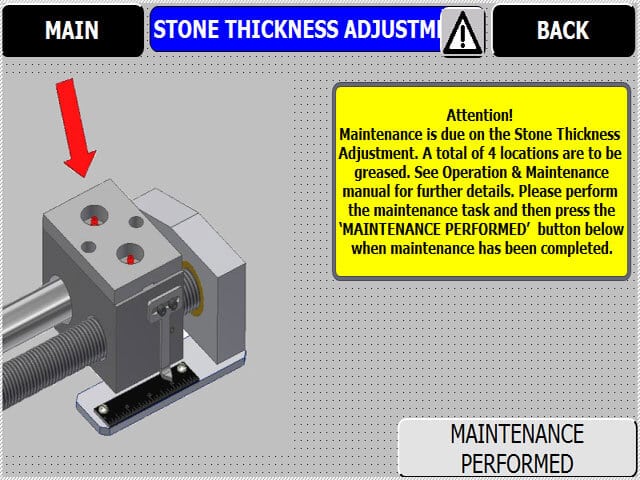

Maintenance Pop-Ups
The FASTBACK® II maintenance popups automatically notify the operator that a maintenance task needs to be performed, via the touchscreen. For many of the maintenance items, the machine monitors the actual usage of that specific component by utilizing a variety of timers and counters that run seamlessly in the background of the program.

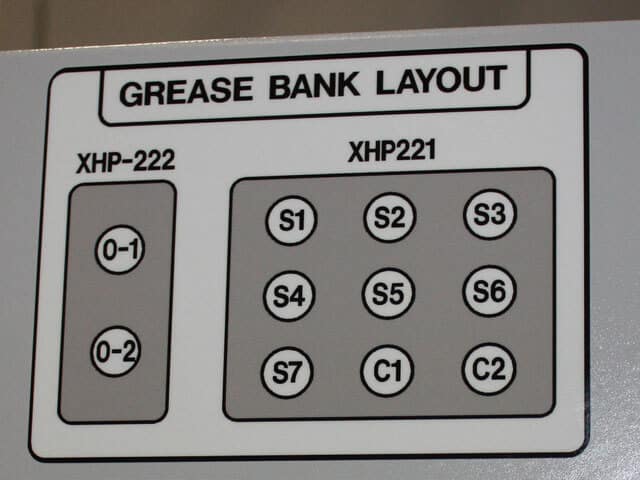

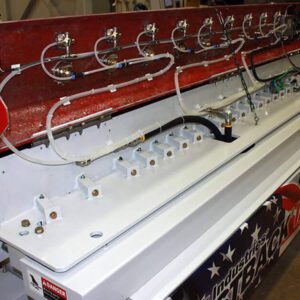

GREASE BANK
The FASTBACK® II new grease bank lubricates all spindles without having to remove the tooling. It also greases the oscillation bearings for optimal uptime.
Watch Videos
Key Features
- Single Pass, Load-and-Go Automation
- FAST Production: Up to 65″ per minute single pass performance (dependent on material and piece size)
- 45 degree chamfer top and bottom edge corners (removes saw chips)
- Piece height: 3″ to 96″ (with optional SlabBACK™ support system)
- SlabBACK Material Support System
Designed with fabricator feedback, this optional system will provide you the capability of running larger pieces through the highly productive FASTBACK®. Safely secured to the machine and floor, the SlabBACK can manage large pieces up to 96 inches and can be retrofitted to FASTBACK® and FASTBACK® II models with a 10-foot ceiling height requirement.
- The Smartest Edger on the Market
The FASTBACK® II is the only machine in its class to offer a programmable, color touch-screen for simple machine controls and useful features including:
- Spindle Stagger
- Tool Life Monitoring
- Polish Offset Pro
- Automated Water Control/Shutoff
- Manual Spindle Pressure Adjustment
- Remote Diagnostics
- Exclusive Spindle Stagger
Park Industries® exclusive Spindle Stagger on the FASTBACK® II Edge Polisher feature allows the operator to adjust the point at which the tool engages and disengages with the leading and trailing ends of the material. This ensures consistent and total polish end-to-end, essential for tightly nested slab layouts.
- Polish Offset Pro for Euro Seams
The FASTBACK® II Edge Polisher’s exclusive Polish Offset Pro feature allows you to offset the point at which the spindles engage and/or disengage with the material. This allows the operator to run Euro Seam pieces through the machine.
- Optimized Oscillation
The FASTBACK® II Edge Polisher’s unique oscillating bridge design ensures higher overall polish quality. It utilizes the optimal amount of oscillation necessary to provide excellent polish quality with the least amount of gap possible. This provides a better “end to end” match up with material processed on a CNC router.
- Exclusive Armor Shield
A variety of components on the FASTBACK® II, including the conveyor drums and spindles, are impregnated with Park’s exclusive Armor Shield Protection. The Armor Shield Protection protects critical machine parts by enhancing corrosion/wear resistance.
Specifications
| Select up to 3 models to compare key specs | FASTBACK® IIView Layout Drawing | |
|---|---|---|
| Number of Passes | Single Pass | |
| Edge Types | Flat-Edge with Chamfers | |
| Number of Spindles | 9 | |
| Polishing Speed | Up to 65" per minute | |
| Material Handling | SlabBACK Support System + Infeed / Outfeed Conveyors | |
| Part Orientation | Vertical | |
| Part Thickness | 1-6 cm | |
| Part Length | 16"-144" | |
| Part Width | Up to 96" (Standing Up) | |
| Radius Capacity | NA | |
| Footprint including clearance (L x W x H) | 23'8" x 9'6" x 10' | |
| Weight | 6,000 lbs. |
