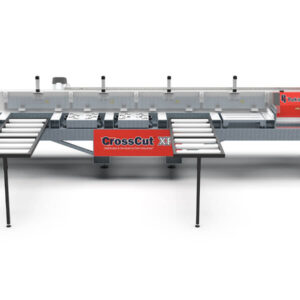

Designed for one thing, and one thing only, the CrossCut™ XP delivers accurate miters with every cut. Cut flawless miters on granite, porcelain, quartzite and more – up to 55 inches per minute!
The CrossCut™ XP brings all the horsepower you’ll ever need, new touchscreen controls and all-way rollers to move parts effortlessly. Cutting miters this clean has never been easier.
Select the feature you'd like to learn about or slide through them below.
The CrossCut™ XP is ramped up with extra horsepower boasting a 15 hp motor - more than enough juice for mitering even the toughest materials. The CrossCut™ XP gets busy mitering up to 55” per minute without sacrificing quality!

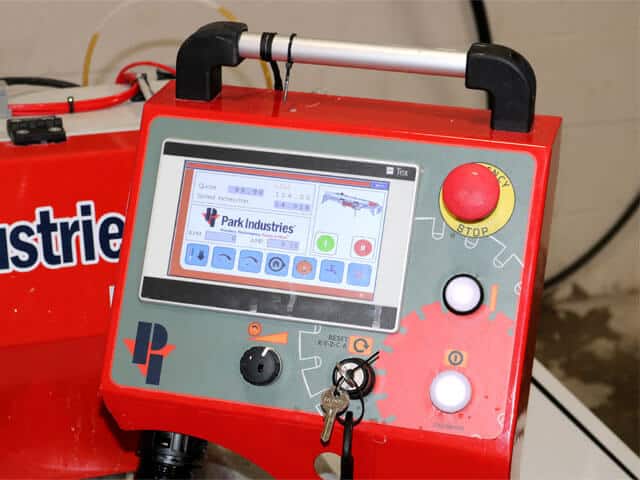

Powered by all-new, easy to use touchscreen controls – very little training is needed to produce flawless miters with the CrossCut™ XP. Simply place the material against the hard stop for quick and accurate alignment. Next, set your feed rate and part length on the touchscreen controller. Then simply hit go. With the auto return feature, the saw returns to the cutting position automatically after a part is cut.
You can also watch amp draw, manage blades, and more with the new controller.

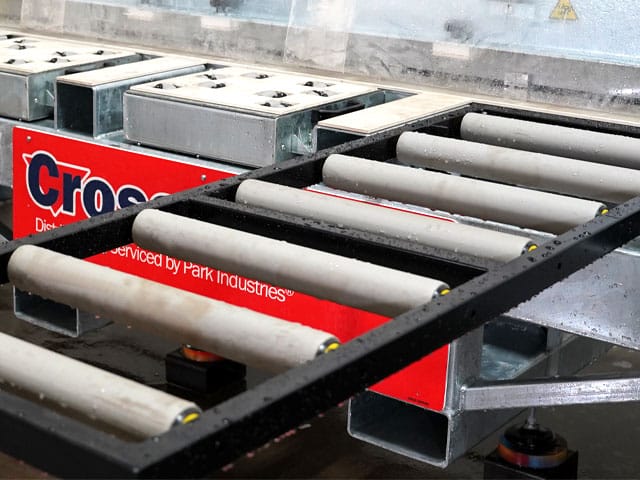

The CrossCut™ XP is configurable with additional conveyor extension tables for managing large parts. Easy to take in and out, these offer a fixed design to make sure they stay level and accurate, unlike other tables with wheels. Two extension tables come standard with the machine.

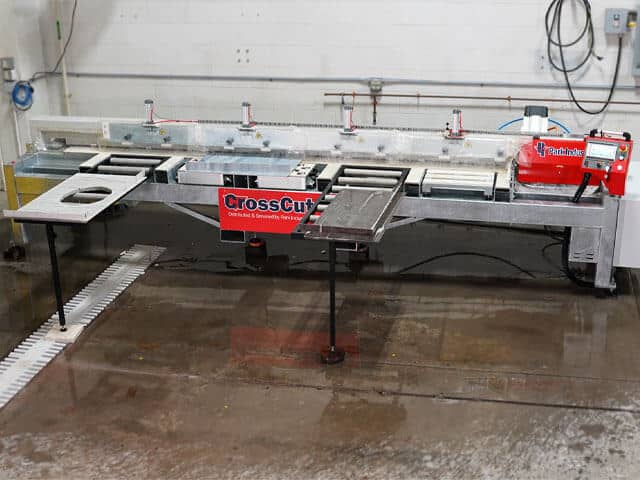

To achieve top miter quality, it starts with the machine’s rigidity and the CrossCut™ XP’s is built-in with a monoblock design. This foundation offers rock solid cutting, with minimal chance of vibration. This design offers simple “pick and place” installation and makes moving the machine after install very easy, should you ever need to rearrange. And it’s galvanized frame ensures exceptional machine durability. It also makes the machine easy to move after install should you need to rearange.
The CrossCut™ XP features hard stop positioning to push parts up against. This allows operators to quickly and confidently align parts without second guessing.
After setting your parts against the hard stops, pneumatic clamps will automatically drop down and lock your parts into place when you hit go. This eliminates shifting of parts, whether you are cutting an apron piece or a large island. After the cut is finished, the clamps automatically raise.

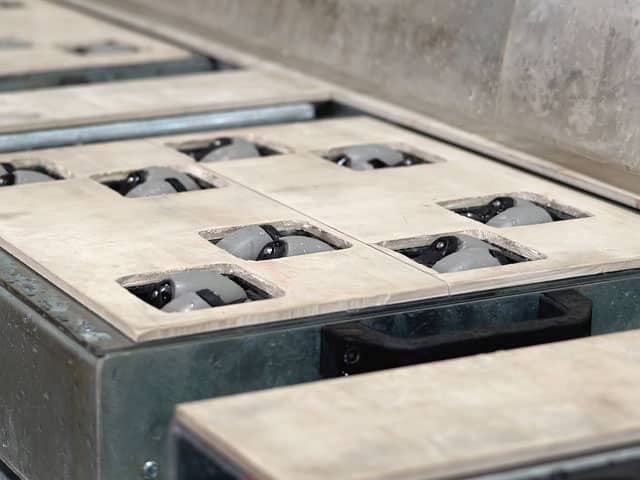

The CrossCut™ XP’s table offers the best of both worlds – a rubber matted surface to help keep parts in place during cutting and all way rollers that automatically pop up before and after cutting to easily move material around in any direction. This makes material handling nearly effortless for the operator.
Produce clean, accurate cuts day-in and day-out with a CrossCut™ XP Miter Saw serviced and supported by Park Industries®.

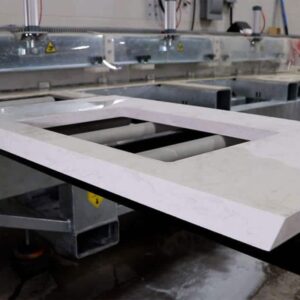

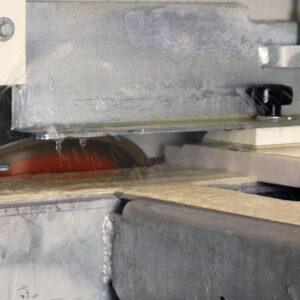

Its accuracy is built-in with a unitized frame design, pneumatic clamps, and hard stop positioning to lock parts into place. This eliminates vibration in your cutting and helps offset bowed materials. Mitering occurs with the polish side down on a flat surface that never gets cut up. Cut miters to a 45º angle +/- 2º, leaving your desired space for gluing and finishing. These features result in miters sharper than the blade that cut them, every single time.
The CrossCut™ XP Miter Saw provides you the machine to fabricate material efficiently and safely. Process miter edges at a rate up to 55 IPM (dependent upon material type). Auto return the saw to the home position in snap at up to 630 IPM.

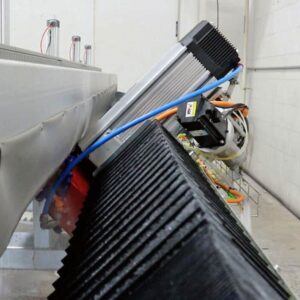

With a 15hp motor and a standard VFD, the CrossCut™ XP is powered to run parts up to 3600 RPMs, perfect for adjusting to porcelains, quartzites, and more. Miter any material with the power and precision you need.
The robust material support conveyor systems and all way pop up rollers found on the CrossCut™ XP provides you the tool to fabricate material easily and safely. Cut miters in a single pass with the material held precisely into place by pneumatic hold clamps.
The CrossCut™ XP is so simple, you can install it all by yourself. Park Industries expert installers are available should you need them, but you have the option to save on installation by simply leveling this plug and play machine at your shop. You’ll be on your way to producing the best miters you’ve ever cut in no time.

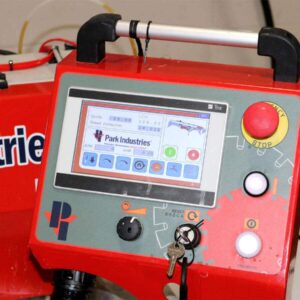

The CrossCut™ XP features a new touchscreen controller to easily set feed rates, watch amps, and more.
|Select up to 3 models to compare key specs||
CrossCut™ XPView Layout Drawing
|Arbor Motor||15 hp|
|Mitering||45º (+/- 2º)|
|RPM's||Up to 3600 RPM|
|Table / Tank Options||All-way rollers + conveyor extension tables|
|Cutting Surface Composition||Galvanized Steel with Rubber Top|
|Max Slab Size (L x W)||11’ 5 ½” (2CM) or 11’ 3” (3CM)|
|Max Cut Depth||2"|
|Footprint including clearance (L x W x H)||191" x 47" x 45"|
