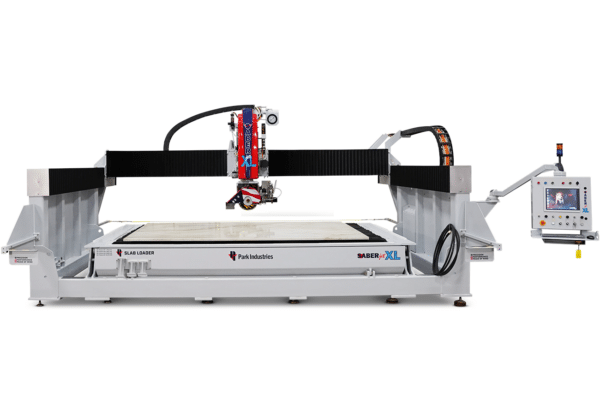

Power up your production with the SABERjet™ XP CNC Sawjet, which boasts an industry-leading 27 hp arbor motor and versatile 5-axis waterjet capabilities. Optimized to cut any material (porcelain, quartzite, and more) with ease. The SABERjet™ XP stands out with its ability to do it at all with maximum efficiency.
High-production processing? No problem. Custom work? You won’t find a more capable mitering machine, with the SABERjet™ XP’s ability to miter with both the blade and waterjet. A true stone-cutting beast!
27 HP ARBOR
Select the feature you'd like to learn about or slide through them below.
The SABERjet™ XP offers industry-leading sawing power with a 27 hp arbor motor. Its 0-47° blade mitering capability produces flawless miter cuts allowing for tightly nested, clean, accurate parts. The SABERjet offers one of the largest mitering work envelopes of any machine on the market - up to 7'x12' slab coverage.

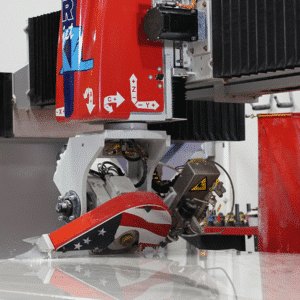

The SABERjet™ XP brings game-changing waterjet cutting capabilities in the form of its 5-Axis waterjet. The sawjet quickly and easily performs mitered cuts with its waterjet on non-linear features or sharp 90 degree inside mitered corners in a single pass.

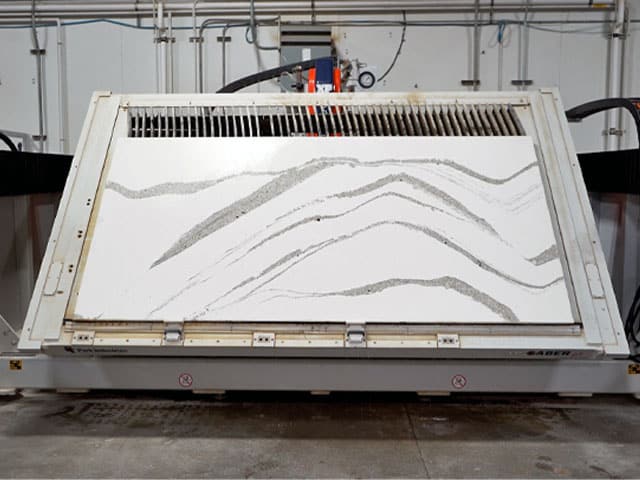

The SABERjet™ XP CNC Sawjet offers three available tank options: Slab Loader (patented), Ballast, and Standard. Tank cleaning is easy with the SABERjet’s unique, single pick slat frame giving you full access to the tank.
The SABERjet™ XP bolsters production capabilities with new DynaMAX 550P and 560P pumps (50 HP or 60 HP) or the new DynaMAX 350 Pump (50 HP) . Whether you want faster waterjet cutting, predictive maintenance features, or a smaller footprint, Park Industries® is proud to offer a variety of DynaMAX Waterjet Pumps to fit the needs of any fabricator!
DynaMAX Waterjet Pumps are backed by a 2 year warranty.
The SABERjet™ XP CNC Sawjet offers minimal 11 ft. ceiling height requirement. All pressure lines travel inside of the cable carrier, creating a no whip design and keeping the machine height 7 ft. lower than other manufacturers.
The SABERjet XP features easy operation with its touchscreen controller. Once a job is programmed, simply scan the cut sheet with a barcode at the machine and hit go!
For programming, Alphacam with Park EZ Buttons provides the fastest and most intuitive programming software in the industry.
The SABERjet™ XP CNC Sawjet allows for manual (orthogonal) stone cutting with the blade in any direction at any desired angle without generating a program. The complexity of this manual mode cutting is made easy with the SABERjet™ XP utilizing a laser as a visual guide for accurate blade positioning, simple joystick controls, and a hand-held wireless pendant controller.
An optional camera is available on the SABERjet™ XP CNC Sawjet for stone fabricators to place it above the table, photograph the slab, and layout the program at the machine. The high-resolution, wide angle lens will capture the entire table.
The SABERjet™ XP CNC Sawjet automatically stops running if any obstruction passes through the Photo Eye E-Stops while the machine is in operation.

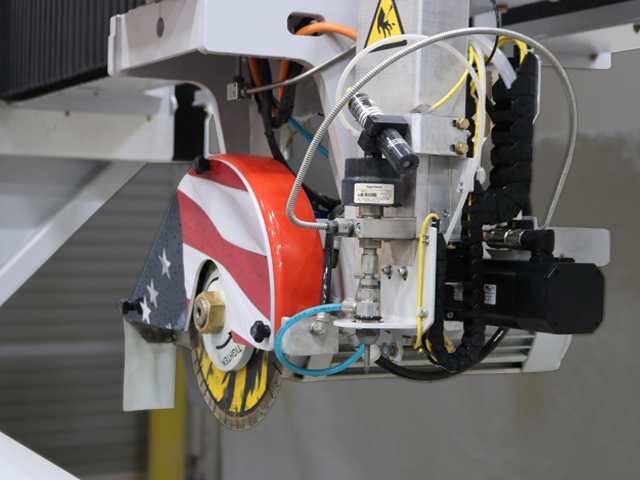

The SABERjet™ XP CNC Sawjet powers up with industry-leading 27 hp saw arbor to make cutting even the hardest materials including ultra-compact surfaces, quartzite, and porcelain materials a snap. This, paired with the new DynaMAX predictive maintenance 50 hp or 60 hp waterjet systems, provides unmatched processing speeds and shop efficiencies.
The SABERjet’s optional VFD (Variable Frequency Drive) increases the saw’s efficiency when cutting ultra-compact surfaces and materials. This VFD option operates at a range of 1200-2500 RPM.

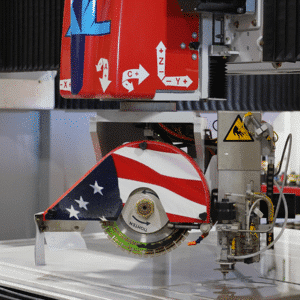

With one of the largest mitering work envelopes in the stone industry – up to 7’x12′ slab coverage – the SABERjet™ XP CNC Sawjet is the mitering sawjet of choice. Reach any miter with its precision mitering blade. Or use its MiterJet feature- mitering performed with the waterjet in addition to the blade. The accuracy of the blade or jet produces flawless miter cuts allowing for tightly nested, clean, accurate parts.
Arc miters? No problem. The SABERjet™ XP quickly and easily performs mitered cuts with its waterjet on non-linear features or sharp 90 degree inside mitered corners in a single pass. Watch the SABERjet™ XP cut a mitered kitchen >
You asked, and we answered…The industry’s leading CNC Sawjet now offers double the production. Never stop cutting with the SABERjet™ XP Two Table Sawjet.

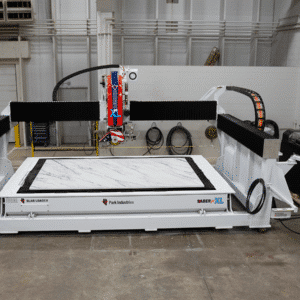

The small footprint, single-pick, monoblock design of the SABERjet™ XP CNC Sawjet is ideal. True unitized design with no bolt-on extensions resulting in extreme rigidity. The compact sawjet design requires minimal floor space and works well with low ceiling heights – only 11 feet tall.
This sawjet design includes high rails and bellow covered ways, protecting the machine from the harsh elements of stone fabrication and maximizing machine uptime/longevity.
Programming made FAST and SIMPLE! Park EZ™ Buttons, exclusive on Park Industries CNC machinery, make common programming tasks EZ. Paired with Alphacam’s world-class CAD software, use over 40 built-in Park EZ™ buttons to eliminate tedious programming steps and increase your productivity.
With buttons like Auto Tool Path, Ultracompact Automation, and Parametric Shapes – you can save 60% or more of your programming time and clicks!

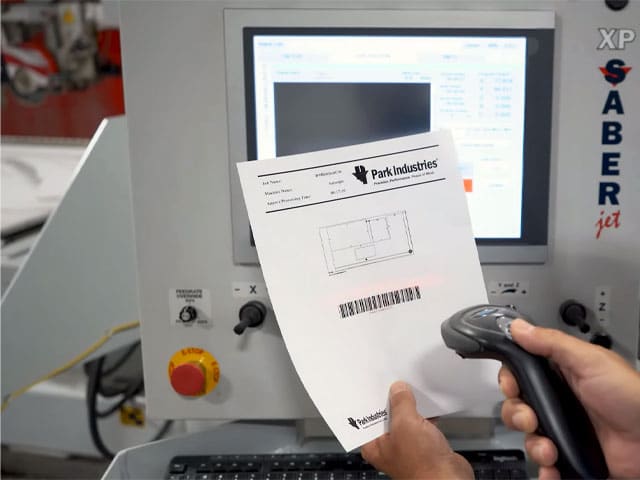

Simply take your programmed cut sheet to your SABERjet XP’s touchscreen HMI controller, that runs with the world’s most popular operating system, Windows 10.. Use the barcode scanner and hit go!

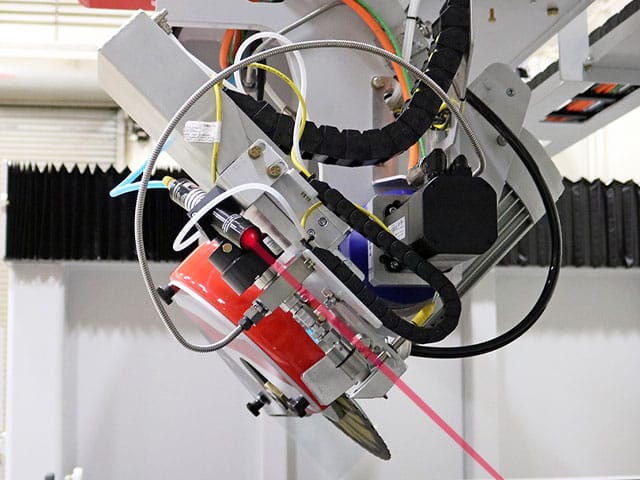

Unique to sawjets, the SABERjet™ XP’s orthogonal cutting mode allows the machine’s blade to cut manually in any direction at any desired angle, with a laser line guide. This cutting style allows for simple manual cuts without generating a program.
Positioning of the machine for manual cutting can be controlled by using manual joysticks on the HMI or a remote pendant, which allows operators to move freely around the sawjet with literally no strings attached.
|Select up to 3 models to compare key specs|
SABERjet™ XP Single TableView Layout Drawing
|Arbor Motor||27 hp|
|Blade Size||14" - 16"|
|Mitering||0-47° Blade, 0-58° Waterjet|
|Max Cut Depth||Blade: 3.5" - Waterjet: 4.75"|
|Max Slab Size (L x W)||144" x 84"|
|Cutting Modes||Manual, Full Auto (CNC)|
|Table / Tank Options||Slab Loader (SL), Ballast, or Standard|
|Cutting Surface Composition||Rubber Slats (SlabLoader or Ballast), Durock (Standard)|
|Camera Options||Overhead, SIDE-SHOT, or Pathfinder|
|Footprint including clearance (L x W x H)||30'4.75" x 21'10.5" x 10'3.625"|
|Weight||20,000 lbs. (SL Tank)|
