The JAVELIN™ CNC Sawjet is the only sawjet that hits every target. The smallest footprint with the largest work envelope. High-production processing speeds with high-precision accuracy for custom work. A rigid arm that excels at mitering with easy-to-access tables. Highly configurable to meet the needs of any shop layout.
27 HP
ARBOR MOTOR
5-Axis
Waterjet
Smallest Two Table
Footprint
Please choose your region and fabrication type below.
As the smallest two table sawjet in the industry, save valuable shop space and get the high production you crave without compromising table coverage.
With the largest mitering work envelopes in the stone industry, the JAVELIN CNC Sawjet is the mitering sawjet of choice. Use its Miterjet feature, mitering performed with the waterjet, for maximum efficiency. The accuracy of the blade or jet produces flawless miter cuts allowing for tightly nested, clean, accurate parts.
Arc miters? No problem. The JAVELIN quickly and easily performs mitered cuts with its waterjet on non-linear features or sharp 90 degree inside mitered corners in a single pass.
The JAVELIN leads in the industry with a 144” x 88” work area and offers two slab stop positioning systems: a program safe zone that guarantees all your cuts are without limits and a full table zone that allows you to cut jumbo slabs.
The JAVELIN’s strength & precision comes from its Rotating Cantilever Arm (RCA).
Built with maximum stiffness on a high-precision rotary index system, the arm will never bend. The blade and jet are centered under the arm, so less torque is needed while cutting. The torsional stiffness of the arm and the upgraded helical gear rack ensure tight cut tolerances even while mitering at the perimeters of its table.
This highly engineered design offers unwavering rigidity and reliability. Every component, from its steel to bearings, drives, and more, has been carefully selected to excel under extreme conditions. The rails and bearings are also protected from the harsh environment to guarantee long-lasting performance. Plus, our Auto Lube system keeps them in optimal condition. Maintenance? Only the occasional cleaning of the bellows.
The JAVELIN CNC Sawjet powers up with industry-leading 27 hp saw arbor to make cutting even the hardest materials including ultra-compact surfaces, quartzite, and porcelain materials a snap. This, paired with the new DynaMAX predictive maintenance 50 hp or 60 hp waterjet systems, provides unmatched processing speeds and shop efficiency.
The JAVELIN’s optional VFD (Variable Frequency Drive) increases the saw’s efficiency when cutting ultra-compact surfaces and quartzite materials. This VFD option operates at a range of 0-4500 RPM.
Configure the pump, garnet hopper, and more to meet the needs of any shop layout. You can even mix and match table styles (Slab Loader or Standard).
Load/unload from 3 sides – easy and accessible without any walls or fencing in the way. This design offers increased efficiency and flexibility in your shop.
Select up to 3 models to compare key specs | JAVELIN™View Layout Drawing | |
---|---|---|
Arbor Motor | 27 hp | |
Blade Size | 14" - 16" | |
Mitering | 0-47° Blade, 0-58° Waterjet | |
VFD | Yes | |
RPM's | 0-4,500 | |
5-Axis Waterjet | Yes | |
Footprint including clearance (L x W x H) | 33’ x 26'6" x 10’2" | |
Max Slab Size (L x W) | 144" x 88" | |
Cutting Modes | Full Auto (CNC) | |
Table / Tank Options | Slab Loader (SL), or Standard | |
Cutting Surface Composition | Rubber Slats (SlabLoader), Durock (Standard) | |
Camera Options | Overhead, SIDE-SHOT, or Pathfinder | |
Monoblock Design | No | |
Weight | 21,000 lbs. (excluding tanks) |

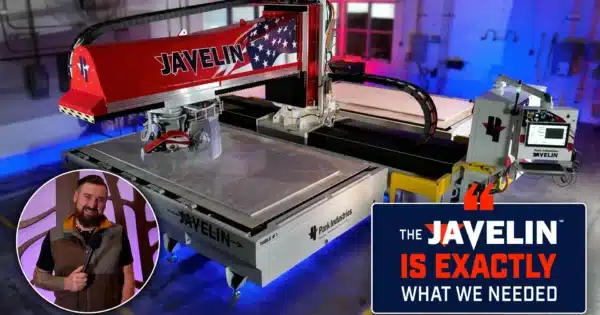

The JAVELIN was exaclty what our shop needed. We had limited space for a two-table machine and also required a high-production sawjet to feed our three TITAN’s. The JAVELIN fit the bill perfectly. It’s so efficient and easy to run, we were confident enough to sell our existing single table sawjet.
Our operator loves how easy it is to load / unload the tables – the machine’s accessibility cut our table turnover time in half. What’s more, the JAVELIN’s cut quality is even better than we could have imagined. Its rigid build and helical gear rack achieves tighter tolerances than our previous sawjet, especially while mitering and cutting tough materials like quartzites.
I highly recommend the JAVELIN and am proud to have it as the backbone of our shop.
Yes, I recommend this product.
