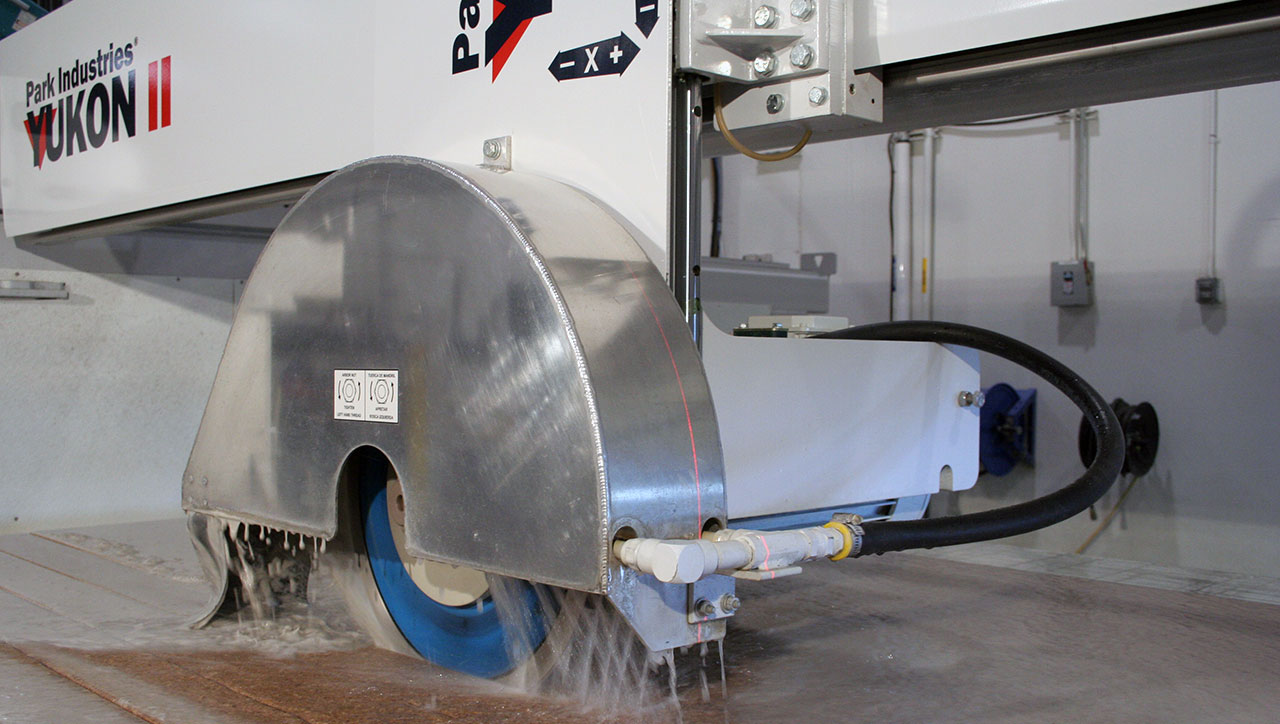

YUKON® II
Semi-Auto Bridge Saw
Increasing your output speed is easy when you use America’s most popular stone saw – the dependable YUKON® II Bridge Saw from Park Industries®. Simple, reliable, accurate – Trust your sawing needs to the YUKON® II as over 1,000 fabricators have done in North America.
-
0-47°
MITER -
SEMI-AUTO
CUTTING MODE -
20 HP
ARBOR MOTOR
Choose your Region
Please choose your region and fabrication type below.
Select the feature you'd like to learn about or slide through them below.

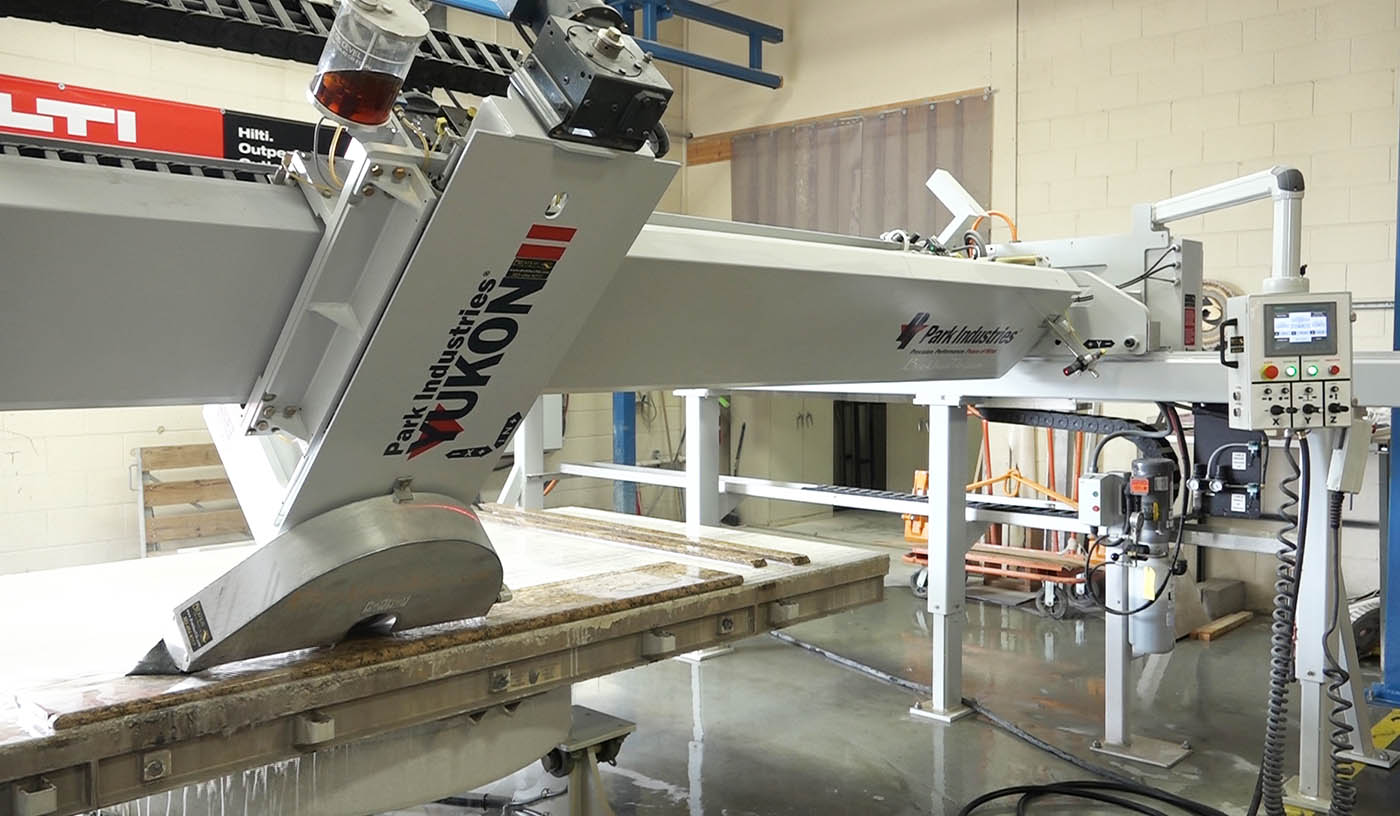

MITER CAPABILITIES
The YUKON II Bridge Saw offers extremely accurate and consistent cutting with optional powered bridge miter capabilities that produces flawless, precise miter cuts up to 47 degrees.
Hydraulic TILT TABLE (optional)
360 degree manual rotation, hard stop locations every 45 degrees, central grease location, 0-70 degree powered tilt with air brakes.
Blade & Cut Depth
- 16" blade = 3-1/4" max cut depth
- 18" blade = 4-1/4" max cut depth
- 20" blade = 5-1/4" max cut depth
- 24" blade = 7-1/4" max cut depth
- 28" blade = 9-1/4" max cut depth
LASER Blade Projection
A Laser Position System projects an accurate saw path which allows operators to make any cut needed with confidence.
SIMPLE OPERATION
The intuitive controls are simple to operate and allow you to program an entire slab and give your operator complete control to make quick, quality cuts without complicated controls. A single cut go-to feature quickly advances to the next cut location with extreme accuracy, taking length and thickness into account.
A wireless pendant offers even easier operation.
BASE FRAME WITH SUPERIOR CORROSION RESISTANCE
Heavy-duty structural steel plate construction. The bridge is rigid torsion design, stress-relieved, precision-machined fabricated robotic weldment, and corrosion resistant.
Watch Videos
Key Features
-
Simple to operate
The intuitive controls are simple to operate and allow you to program an entire slab and give your operator complete control to make quick, quality cuts on the hardest stone. The YUKON® II gives you the power to create precise and fast cuts without complicated controls. Diagnostic screens make the YUKON® II even more user-friendly.
A single cut go-to feature quickly advances to the next cut location with extreme accuracy, taking length and thickness into account. Powered bridge miter capabilities create accurate and clean miter cuts up to 47 degrees.
-
Tools to manage stone
Managing material is easy on the YUKON® II. The YUKON® II tilt table has pre-determined stop locations. It also allows stop and lock at any angle with pneumatic positioning and brakes, giving your operator complete control of the stone. Tilting capabilities, paired with the heavy-duty 360 degree rotating table allows for easy positioning.
An optional Variable Frequency Drive (VFD) allows flexibility to change blade RPM to meet your preferences.
-
Customize the package tailored to your needs
Countertops or dimensional stone cut speeds up to 15 ft/minute. Configure your saw with up to a 24″ blade with a max sawing depth of 7.25″ on countertop models, and up to a 28″ blade with a max sawing depth of 9.25″ for dimensional sawing. The YUKON® II consistently creates finished dimensional stone in less time with exceptional accuracy. The 28” blade (maximum capacity) will cut slabs of granite, marble, limestone, sandstone, or bluestone up to 9 1/4” inches thick.
-
On the go cutting
The YUKON® II offers a wireless pendant for easier operation, more flexibility, and faster processing. The YUKON® II also projects an accurate saw path, via a laser line guide, giving operators the confidence to make any cut needed.
-
Built to last
The YUKON® II, built with a heavy-duty rigid torsion bridge design, is unmatched in reliability, and longevity with owners getting 15+ years of production out of a single saw.
Specifications
| Select up to 3 models to compare key specs |
YUKON® II - CountertopsView Layout Drawing |
|
|---|---|---|
| Arbor Motor | 20 hp | |
| Blade Size | 16” – 24” | |
| RPM's | 1,750 | |
| VFD | Yes | |
| Mitering | 0-47° | |
| Table / Tank Options | Powered Tilt + 360° Rotation | |
| Cutting Surface Composition | Concrete | |
| Cutting Modes | Manual, Semi-Auto | |
| Max Slab Size (L x W) | 144" x 84" | |
| Max Cut Depth | 7.25" | |
| Footprint including clearance (L x W x H) | 24'1.8125" x 25' x 9'1.5" | |
| Weight | 6,000 lbs. + 10,000 lbs. turn table |
Related Customer Success Stories
Chippewa Stone
Medina, OhioWith a focus on the small town values of "family, quality, and service", Oskar and Courtney Gruber of...
Honed Surfaces
Carrollton, TexasGrowing up in Stone For Matt Zafros, owner of Honed Surfaces, stone fabrication runs in the family. When...
Old World Tile & Granite
Phoenix, ArizonaPriding themselves on customer service, high quality work, and a great company culture - Old World Tile &...
Mesa Fully Formed
Mesa, ArizonaEquipped with seven TITAN CNC Routers and three dual-tank FUSION CNC Sawjets, Rick Bayne of Mesa Fully Formed...
Natural Stone Design Fab
Sacramento, CaliforniaNatural Stone Design began in 1988 specializing in creating high-end, custom work.Since Mike & Teri Medina took over...
AGS Stone
Tampa, FloridaAGS Stone is a family-owned business. Gary and Jackie Rogers purchased the company six years ago and recently both their...
excellent machine
Yes, I recommend this product.
I love having a Yukon at our shop because it allows the guys in the shop to just cut and go while other jobs are being programmed. Having one also allows a skilled worker to complete vein matching with out the software if budget or space is an issue. Another perk is that even if our internet breaks down that machine can keep operating.
Yes, I recommend this product.
Excellent machine! Running for 7 years every day and never a problem. Simple to learn and very dependable
Yes, I recommend this product.
