Cleaning ITM Optics

Guide Number: SG0837 | Printer Friendly Version | View Safety Disclaimer

Skill Level

Level 1

Fairly easy task, requires minimal mechanical/electrical experience.

This guide will show you how to clean the ITM optics. You will need to do this if the beam is not a nice “solid” beam.

Scan to Read on Device:

You will need the following items:

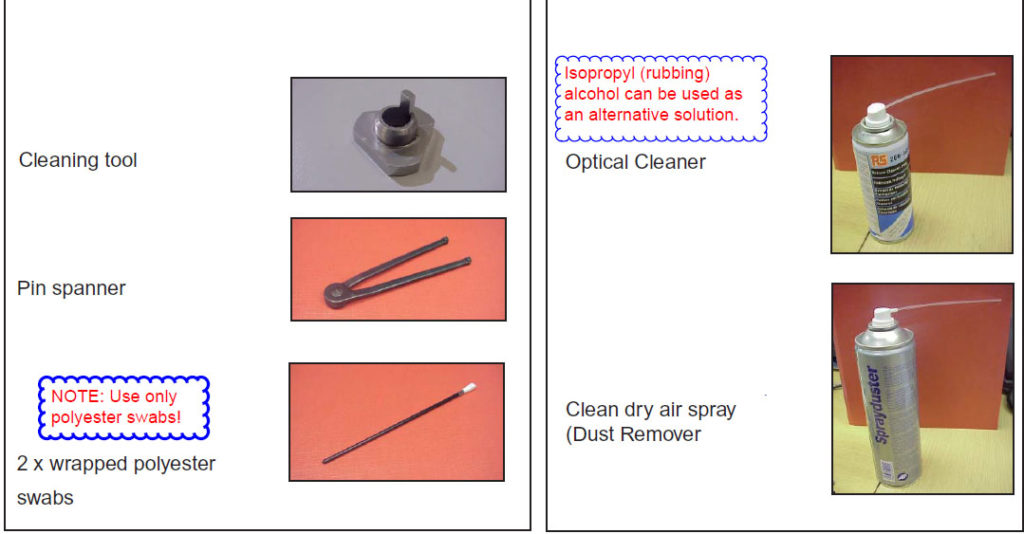

cleaning kit and tools without liquids part# 70002811

Switch off electrical power and air supply

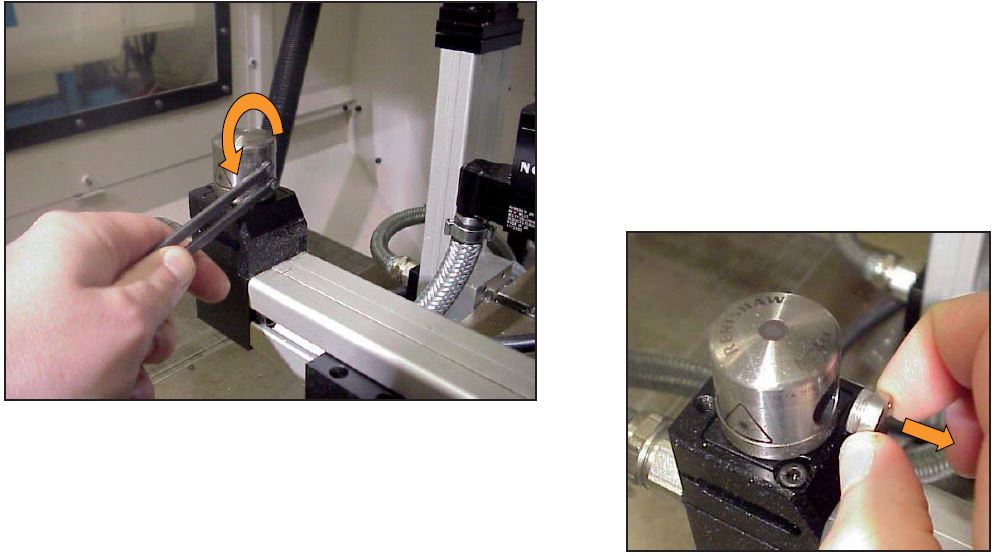

Remove access panels

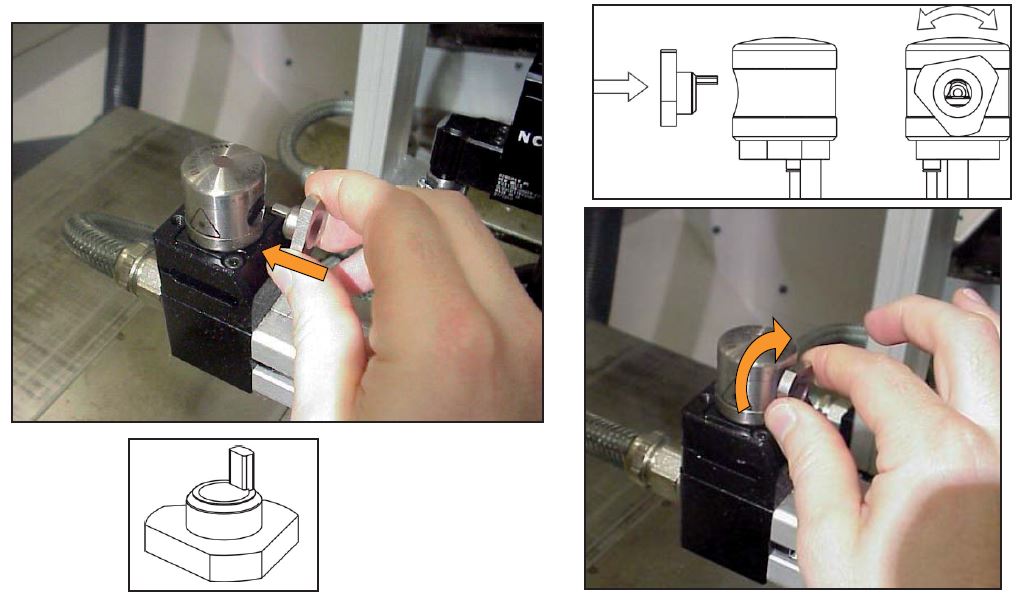

Insert cleaning tool and rotate 70 to 80 degrees.

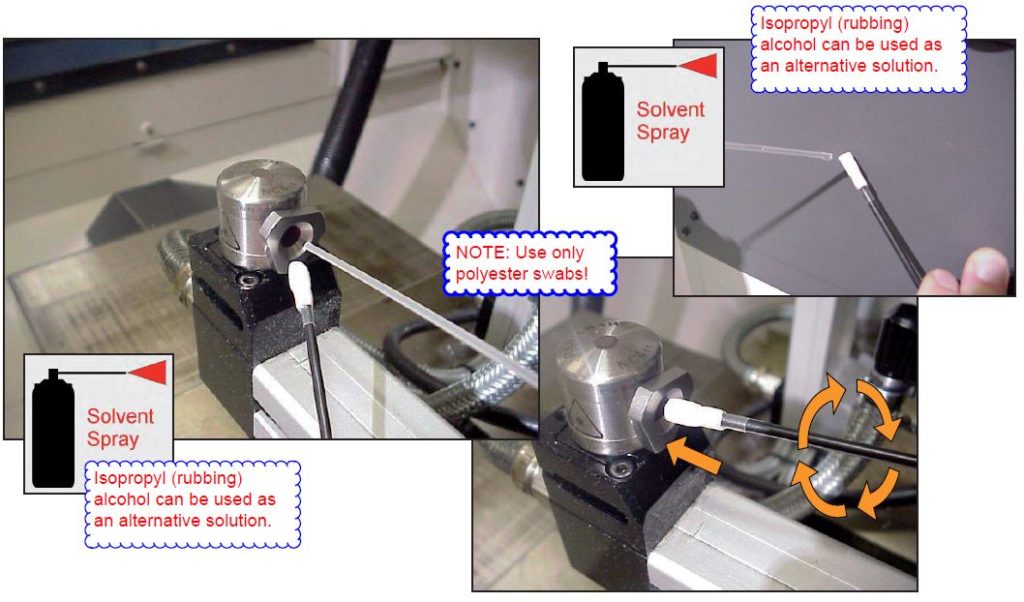

Clean with solvent and soaked swab.

Clean with dry swap.

Dry optics with clean air.

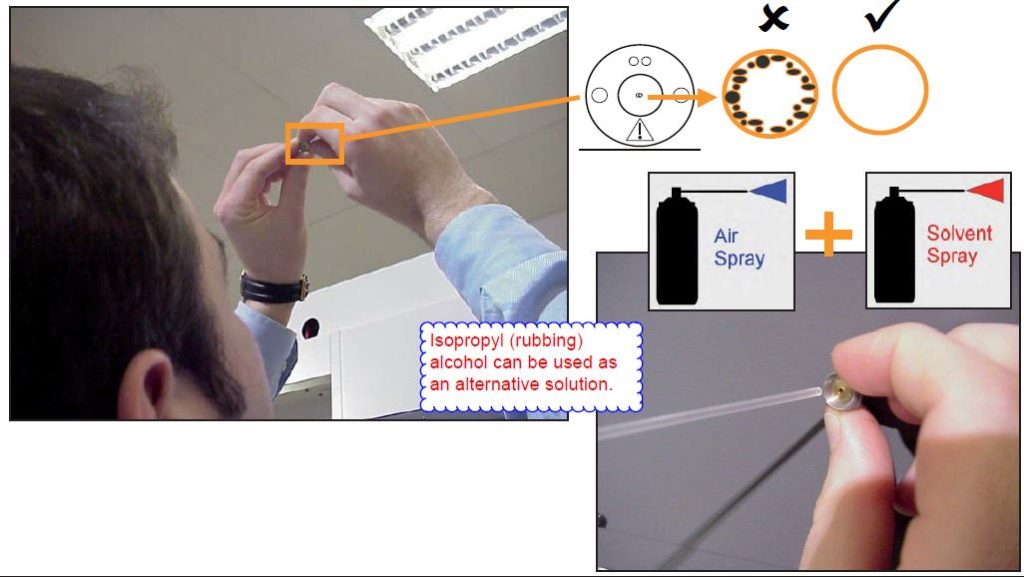

Clean and inspect.

Assemble access panel.

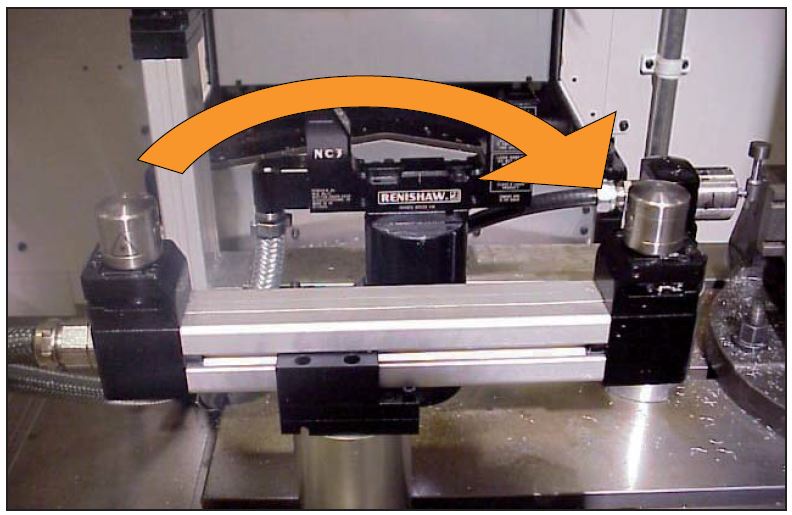

Repeat for both sides.

Restore electrical power and air supply.

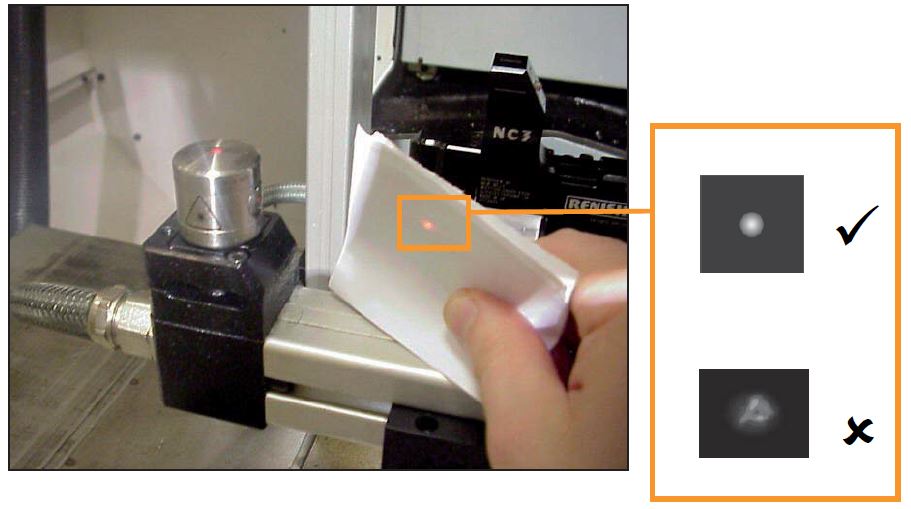

Check laser beam.

Last updated: February 24, 2022
