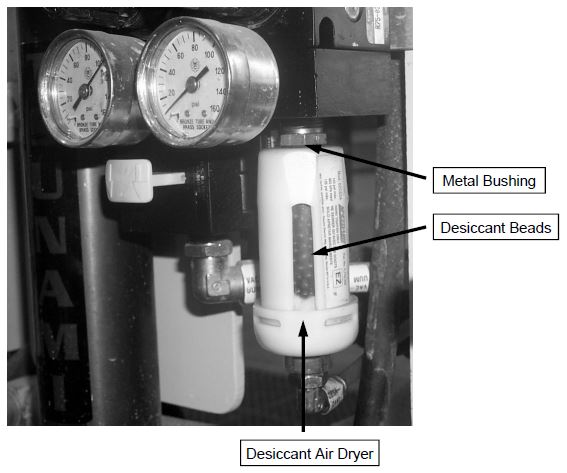

Inspect the Desiccant air dryer once each week and replace if necessary. The
filter/dryer allows you to see when it is time to install a new unit by observing the
color change from the original dark blue to a complete light pink transparent color
in the desiccant beads. Replace the Desiccant air dryer at least once every 6 months.

Scan to Read on Device:

Replace the Desiccant air dryer as necessary, or at least once every 6 months.

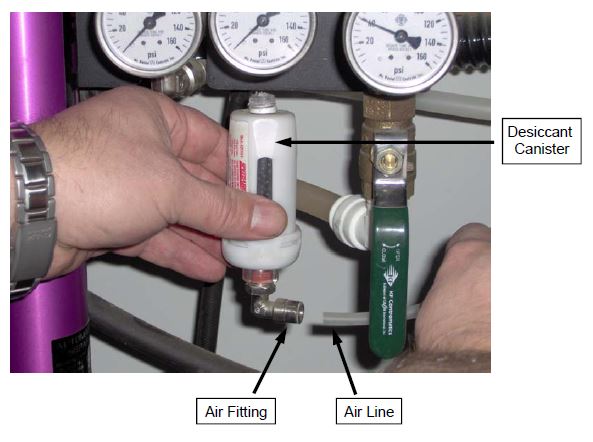

1) To replace the Desiccant air dryer, first disconnect the air line from the air fitting
located at the bottom of the Desiccant canister.
2) Next, unscrew the old Desiccant canister by hand from the metal bushing located
above the Desiccant canister.
3) Then, remove the air fitting from the old Desiccant canister, and reinstall the
air fitting into the bottom of the new Desiccant canister.
4) Finally, screw the new Desiccant canister into the metal bushing, and reconnect the air line to the air fitting at the bottom of the new Desiccant canister.
