Gear Engagement

Guide Number: SG0958 | Printer Friendly Version | View Safety Disclaimer

Skill Level

Level 1

Fairly easy task, requires minimal mechanical/electrical experience.

This document will show you how to correct backlash or gear mesh on Saber, Saberjet, Saberjet XP and Voyager machines.

Y Axis Engagement

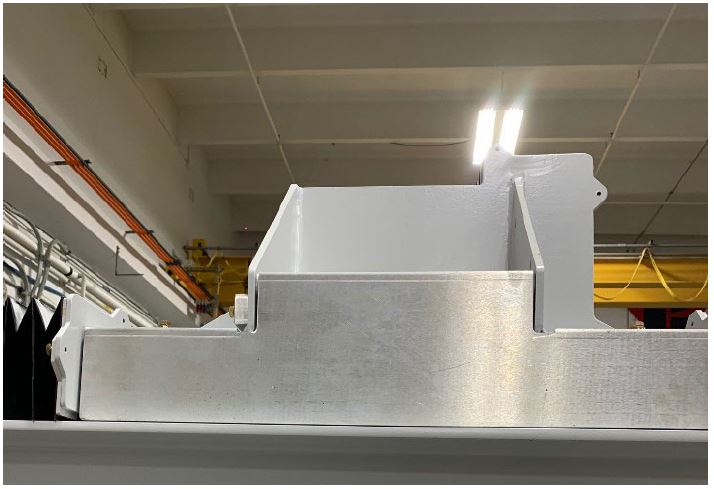

  1. Remove aluminum plate pictured here.

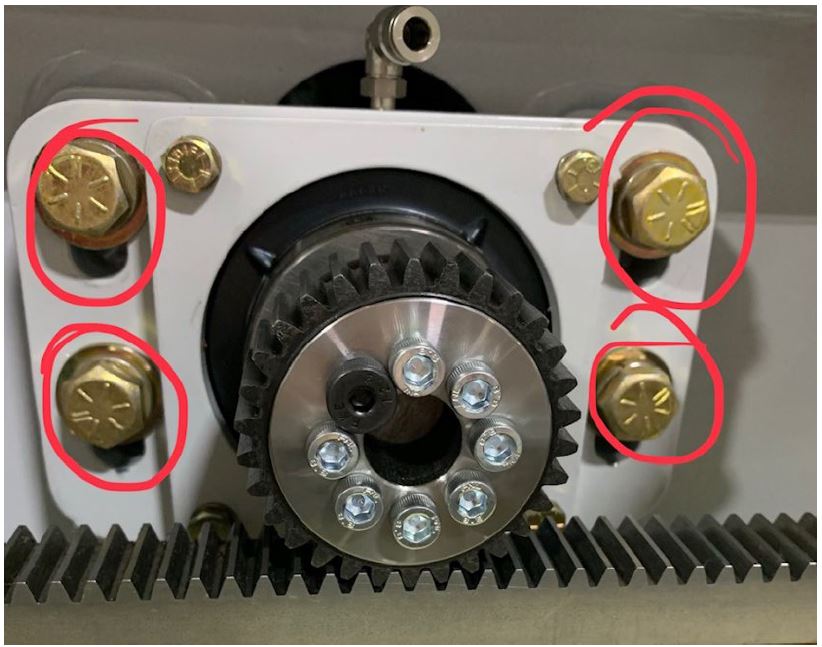

  • 2. Loosen the 4 mounting bolts on the plate circled below.
  • 3. Push the pinion gears into the gear rack further, gravity should do most of the work but could use a dead blow hammer.
  • **Note if the gears don’t seem to match up to the rack that good, you may need to loosen the drive shaft on the Y axis motor gear box.
  • 4. If necessary to loosen drive shaft you need to access from panels here. Remove the bolts and panels.

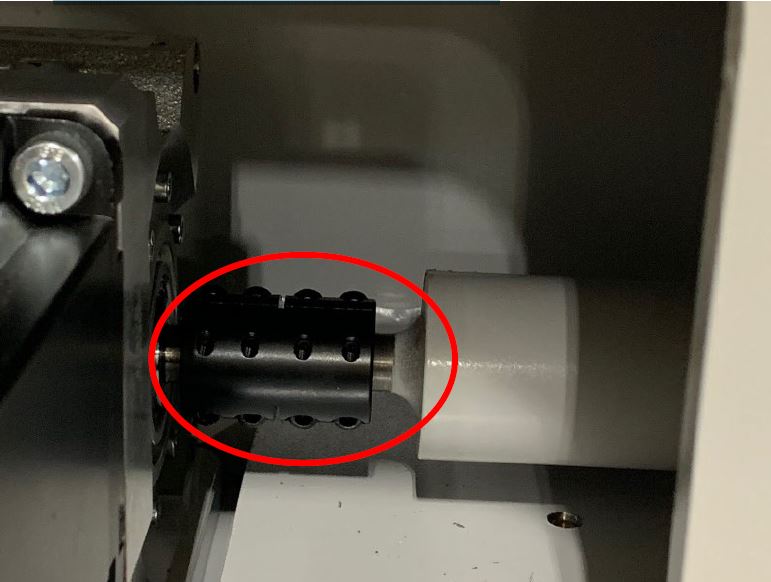

  • 5. Loosen the six Allen wrench screws to loosen the drive shaft. Once the pinion is set correctly tighten them back up.
  • 6. Re-check backlash again once everything once everything is tightened backup.

X Axis Engagement

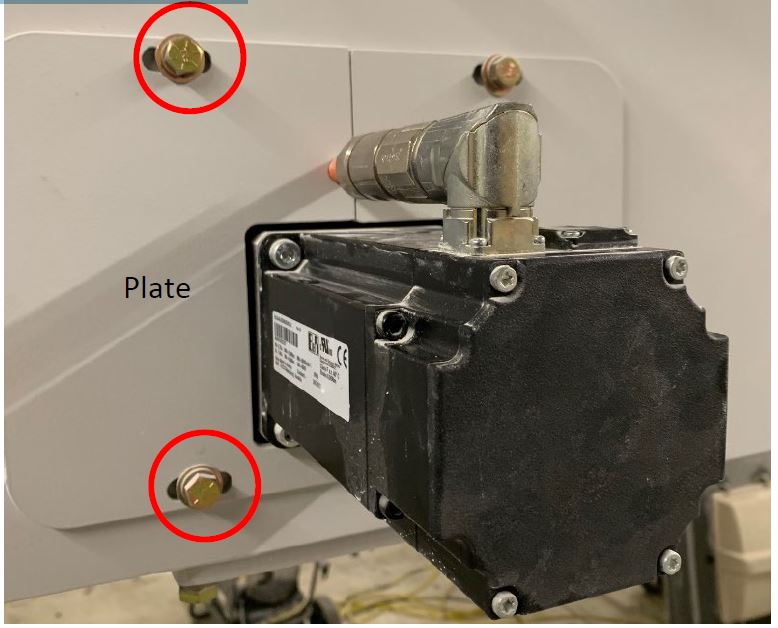

  1. On X axis loosen 4 mounting bolts and push down into gear rack further.
  2. Tighten mounting bolts back up and re-check backlash.

Last updated: December 2, 2020
