Replacing Jetedge intensifier with Hypertherm

Guide Number: SG0235 | Printer Friendly Version | View Safety Disclaimer

This Procedure describes the Process of swapping the JetEdge intensifier with the Hypertherm intensifier on FUSION CNC Sawjets.

Turn off and isolate energy sources

  • Turn off and isolate (Lockout/Tag out) electrical and water sources to the intensifier
  • Remove all lines to the old intensifier
  • Unbolt and remove the old intensifier

Installation

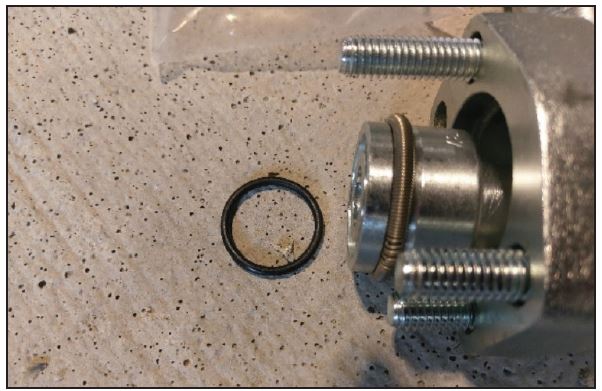

Install the bottom plate on the HYPERTHERM intensifier (remember to install the o-rings)

Install hydraulic lines

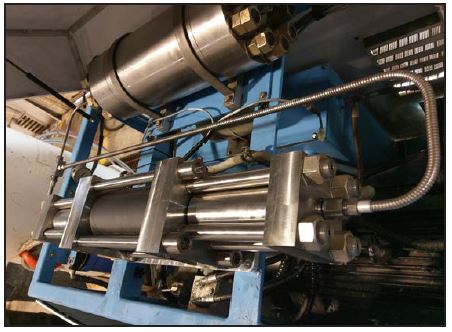

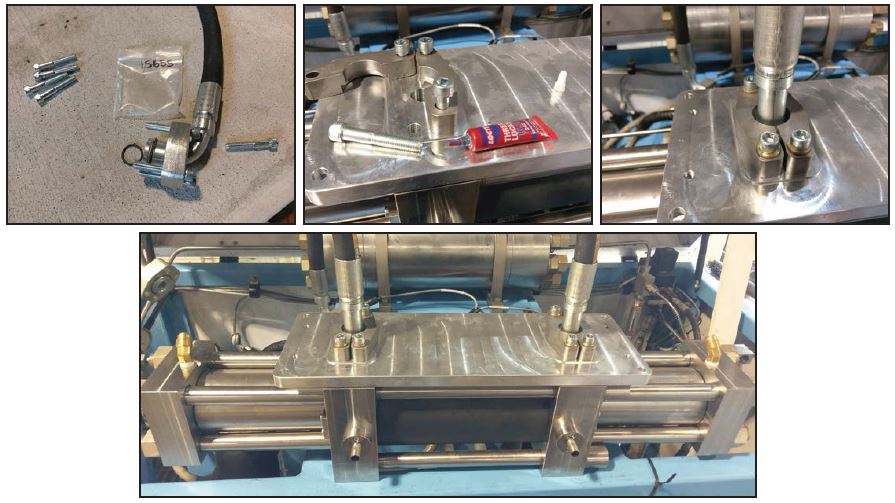

Install the hydraulic flange fittings on the bottom plate, use threadlocker on the bolts (remember to install the o-ring)

Mounting the Intensifier

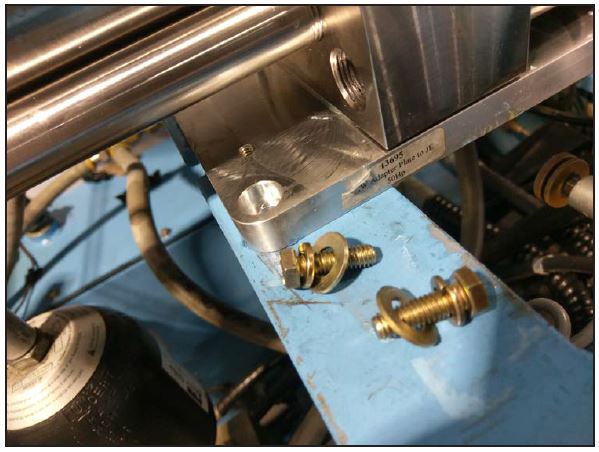

Flip over the bottom plate/intensifier assembly and secure it to the cabinet frame

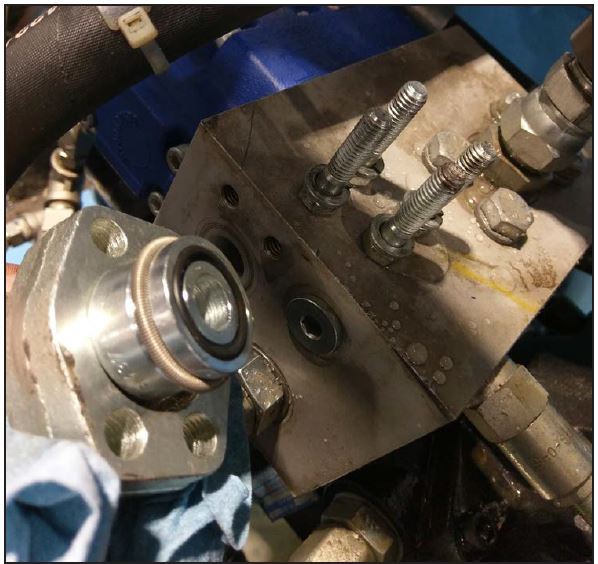

Connect the flange fitting to the manifold block

Install Electrical

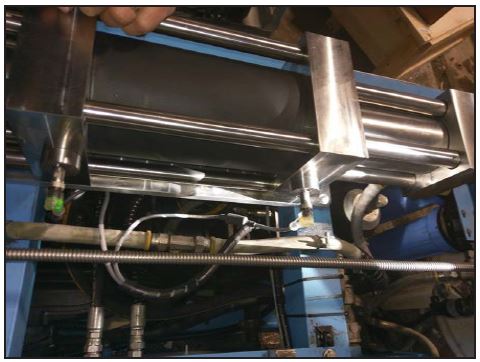

Install the new proximity sensors and cables (Use schematic to verify proper installation. sensors are normally open switches).

  • Red/Black: +24VDC
  • Red/White: – 24VDC

Install High Pressure Waterjet lines

Install the HP lines to the attenuator and to the intensifier

Install low pressure fittings

Restore power and the water to the intensifier

  • Follow the following to get hydraulic fluid flowing in the intensifier:
    a. Lower the nozzle
    b. Open the water valve
    c. Cycle the intensifier on\off for 3 – 4 cycles
  • Contact Park Industries service to load the new .mpf files before running
