SL Laser Easy Sync and cable

Guide Number: SG0780 | Printer Friendly Version | View Safety Disclaimer

Skill Level

Level 1

Fairly easy task, requires minimal mechanical/electrical experience.

Time to Complete: 10 min

How to setup the Easy Sync and communication cable to properly communicate from the IPC to the SL Laser.

Scan to Read on Device:

Easy Sync dip switch settings and cable connections

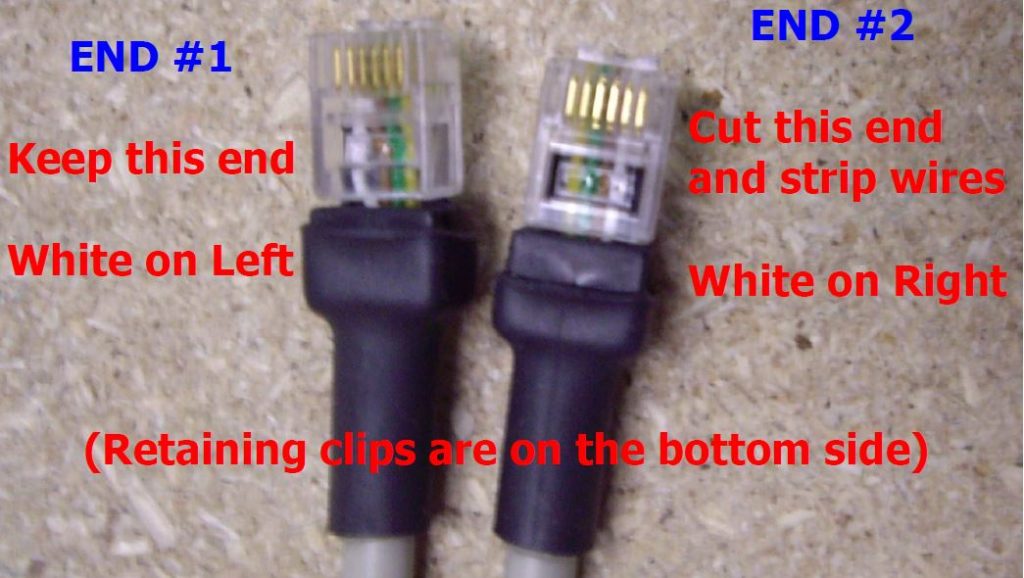

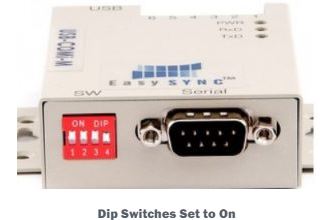

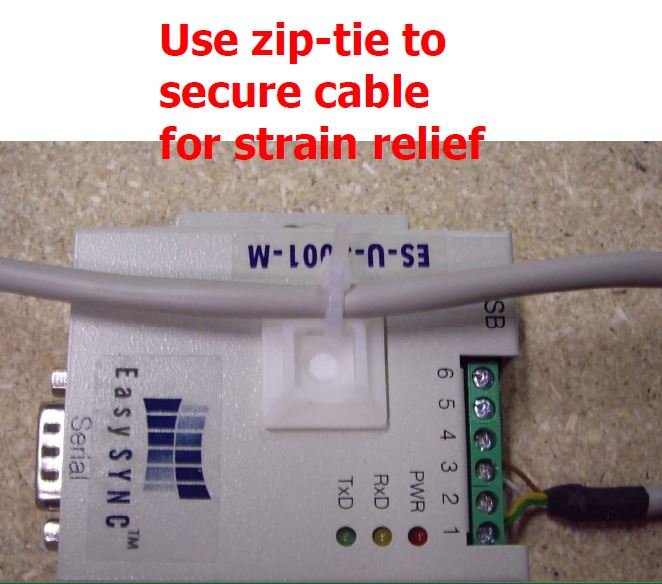

  • Install the included Driver CD before you plug in the USB device. SL Teacher will show a new COM port on Tab 9. After teaching the SL LASER, change to COM port setting in the AutoSL.txt file. Make sure the EasySync dip switches are all set to ‘ON’. The communications cable wires are as Follows:
  • terminal 1 is Green wire
  • Terminal 2 is Yellow wire
  • Terminal 3 is White wire
  • Terminal 4 is Brown wire
