tilt retainer bracket installation

Guide Number: SG0409 | Printer Friendly Version | View Safety Disclaimer

Skill Level

Level 1

Fairly easy task, requires minimal mechanical/electrical experience.

This bracket is designed to retain the table pivot point in the event of failure.

Tools needed 1/2″drive ratchet and 15/16″ socket

  1. Place table top in the down position and disconnect the power from the hydraulic power unit.
  2. Attach bracket to one bearing at a time.
  3. Remove the existing 5/8” bolts and discard. Save the flat washer and lock washer.
  4. If shims exist under the bearing do not disturb them .

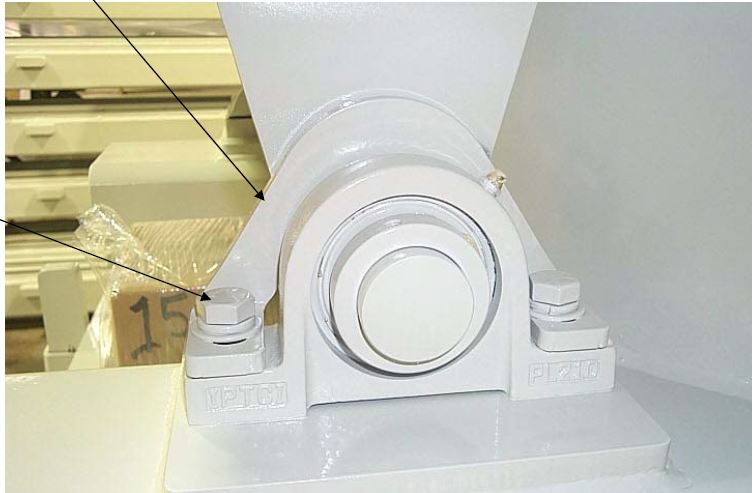

  5. Install the retaining bracket and fasten using the included 5/8” bolts and existing flat and lock washers
