This is a quick reference guide that will help you find service guides for the Javelin.
Scan to view on mobile device
Machine Manual
The operation and maintenance manual for the Javelin CNC SawJet from Park Industries®.
Calibration
This guide shows the standard calibrations for an operator of a Javelin to produce accurate cutting with minimal transitions between the blade and waterjet.
Dialing

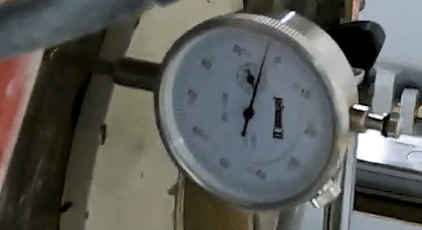

Video’s showing how to dial the Axis 1, A and C axis on a Javelin.
Machine Software

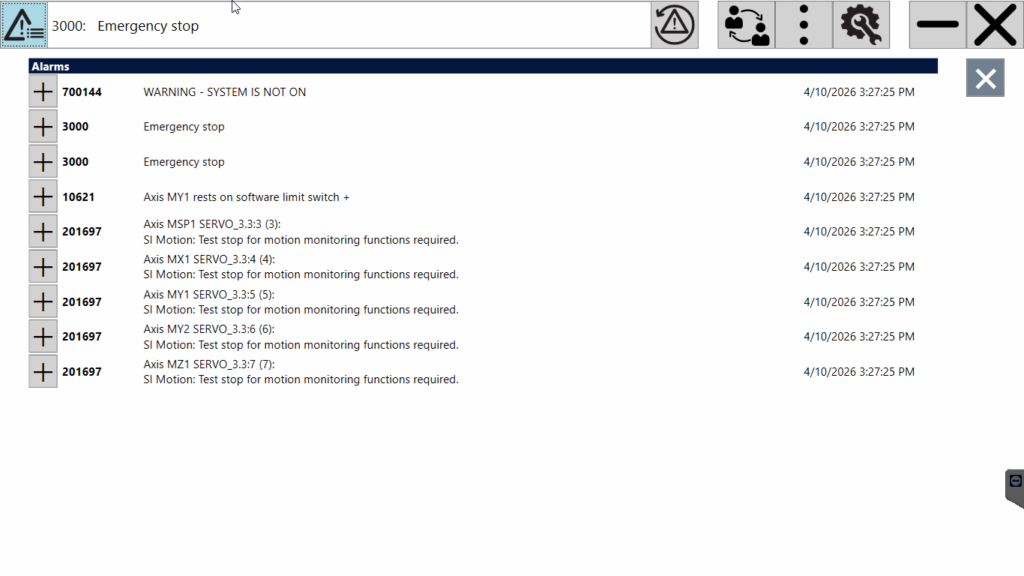

In this guide we will go over the test stop function. The test stop is required when powering up the machine & after the machine has been on for 24 hours. This is a 700053 Test Stop Required Alarm.

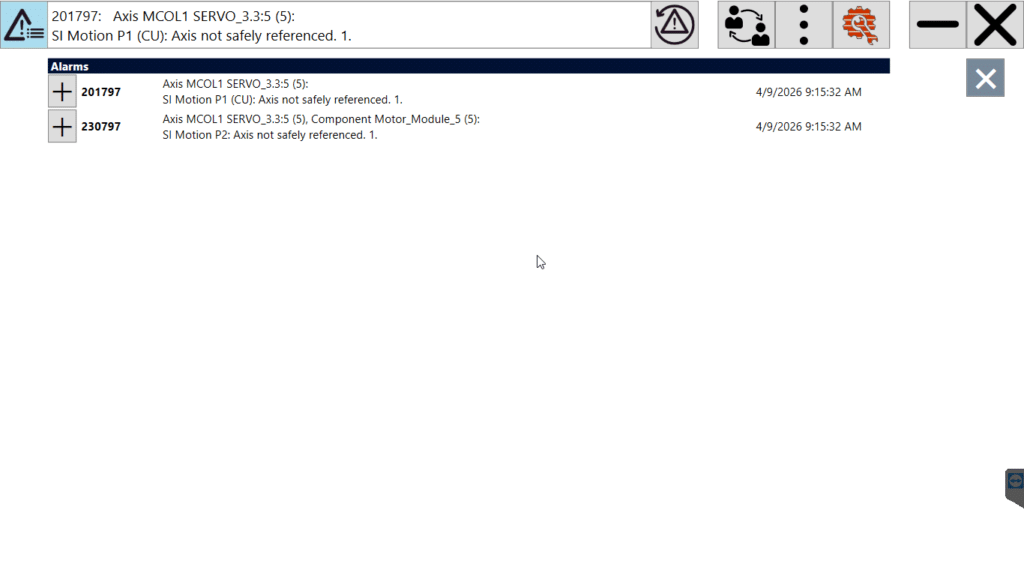

This video will show you how to safely reference an axis on your Javelin. Alarm 201797 or 230797

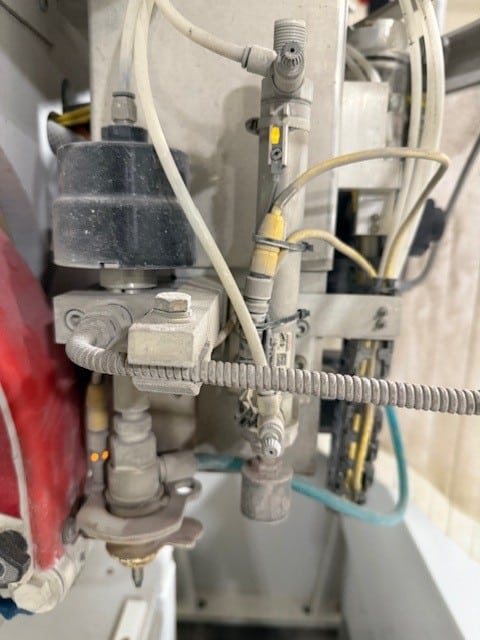

Nozzle Broke Alarm
If you have the nozzle broke alarm but the nozzle is not broke then the prox could be bad. This guide will show you how to bypass the prox until you can get a new one. This alarm will be a 700155 Jet Nozzle Broke Alarm.
Z Axis

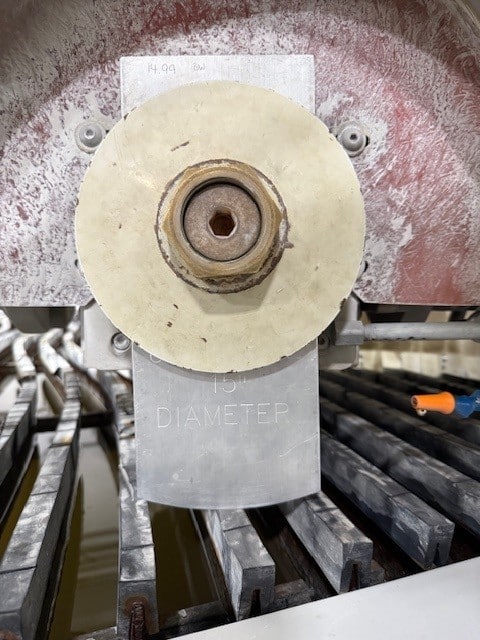

How to perform an advanced blade touch off for accurate miter and straight cuts.
This video is done on a Saberjet but is the same concept as the Javelin
This video shows how to calibrate the material height sensor
Lubrication Flow

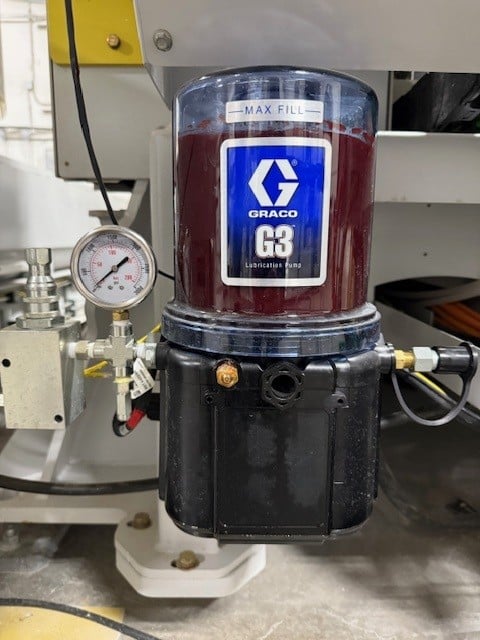

This video will go through how to diagnose grease flow issues on the Javelin if you have a 700041 Lubrication Flow is Low Warning.
This video is on the Voyager but is the same concept as the Javelin.
Water alarm

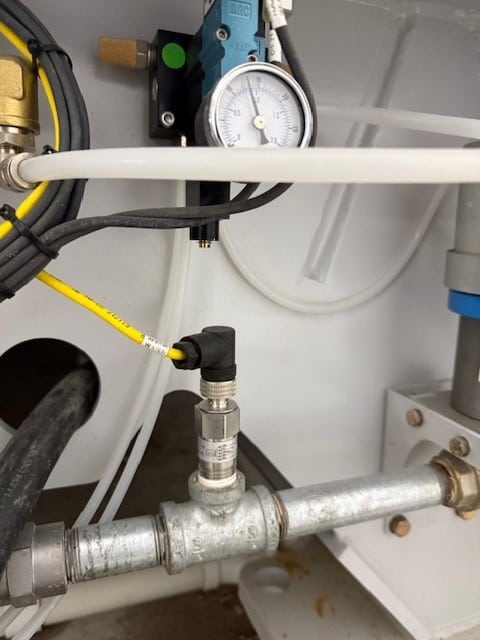

This video will show you how to clean the water flow sensor if you have a 700152 Arbor Water Feed Low/No Flow Alarm
This video is done on a Voyager but is the same concept as the Javelin.
