This is a quick reference guide that will help you find service guides for the Titan 1K. Some of these guides and videos will be made on a newer machine but is the same concept as the 1K Titan.
Scan to view on mobile device
Machine Manual
The operation and maintenance manual for the Titan.
Vacuum

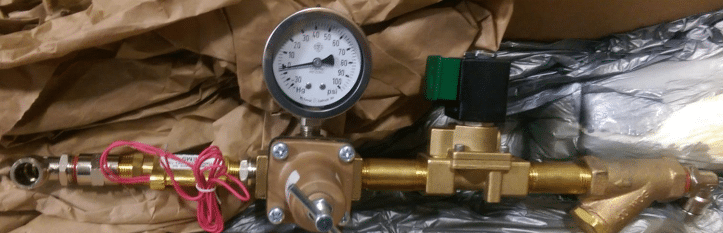

This guide is intended to remedy vacuum issues at -19 in/Hg or less. Before starting troubleshooting, make sure these conditions are made.
In this video, we will discuss how to troubleshoot the vacuum system on your CNC Router. This guide is for Titan 3K and 4 K models, but same process also works with Titan 1K and 2K models
This guide will show you how to reset the vacuum pump overload if it trips.

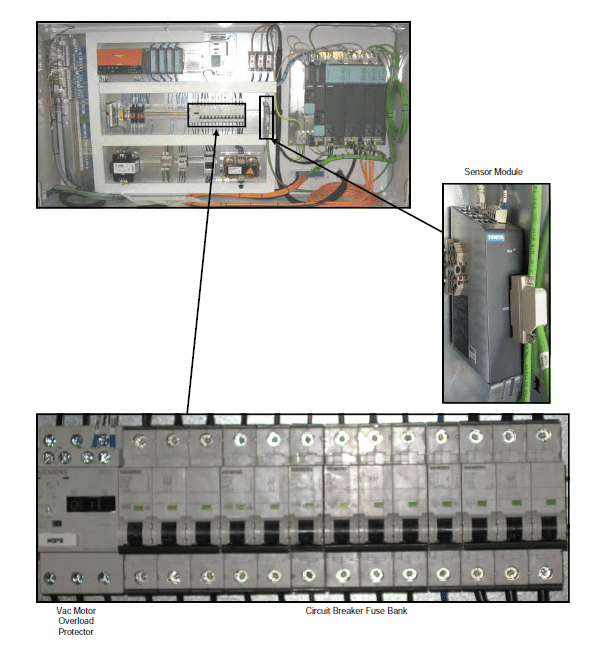

This guide was made on a 4K Titan but is the same consept as a 1K. Your MSP may be in a different location and maybe labeled different. (MSP9)
Spindle
This guide will show you how to replace the water union on the spindle.

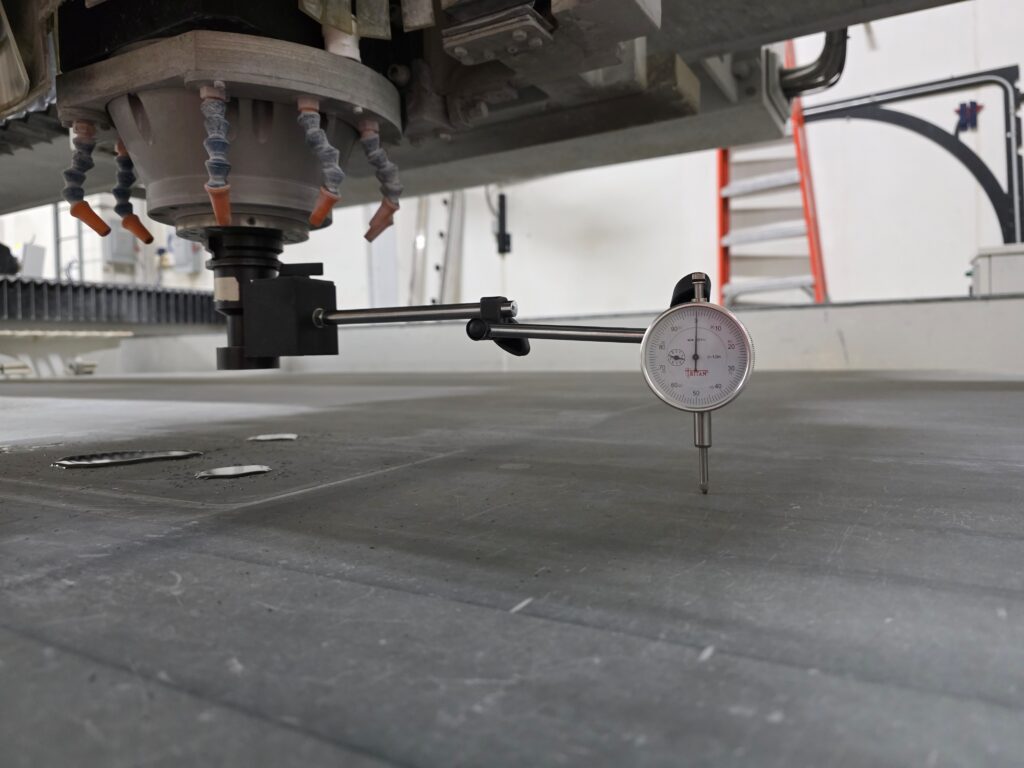

This video demonstrates how to do a spindle sweep on Titan.
This will show you how to calculate your spindle to table Z height.

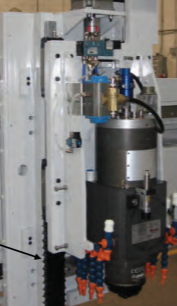

This Guide will show you the steps on replacing an Omlat spindle.
Tool Rack
This video will show you how to capture spindle orientation.
This guide will show you how to capture spindle orientation on an older Titan that has 611U drives .
This video will show you how to set, and check your tool pocket locations.
This video will show you how to set and check your machines tool pocket z location.
Laser

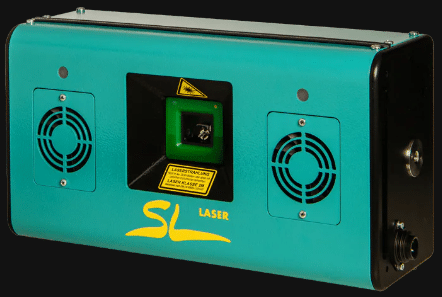

This video and guide will show you how to calibrate the SL Laser.
Water Flow
Video will show how to go about troubleshooting vacuum water flow alarms.

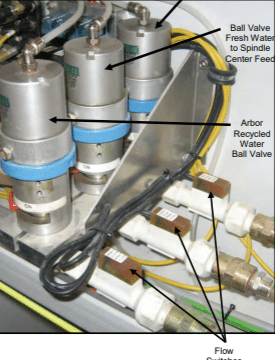

This video will show how to test or trouble shoot water flow alarms and issues on the Titan spindle. These steps will work for both fresh and recycled water.
This video will show how to clean the water flow sensors if you are getting fresh or recycled water flow alarms.
Z Axis

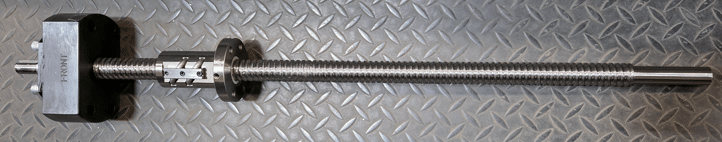

This guide will demonstrate how to replace your ball screw on Titan machines. The ball screw is what the Z axis travels on to move up and down.
X and y Axis
In this video, you will learn how to check for backlash on CNC Routers.
This guide will show you how to change the y axis bearings on a Titan.
This video/guide will show you how to reference an axis on your Titan.
Tool Setup Training
These videos (Part 1, 2, 3 & 4) illustrate the steps required to properly prepare, setup and test tools on the Titan prior to deploying them for normal operation.
