Water Table

Cutting Table

Built like a tank for both plasma and oxy-fuel cutting, the water cutting table option for Park Industries KANO™ HD machines fits the bill. Offering good fume control and a great shield flow for cutting stainless steel, you can rely on this table for heavy-duty cutting at a value based priced.

Reduces Plate
Warpage
Removable
Slat Frames
Lowest Cost
Style of Table

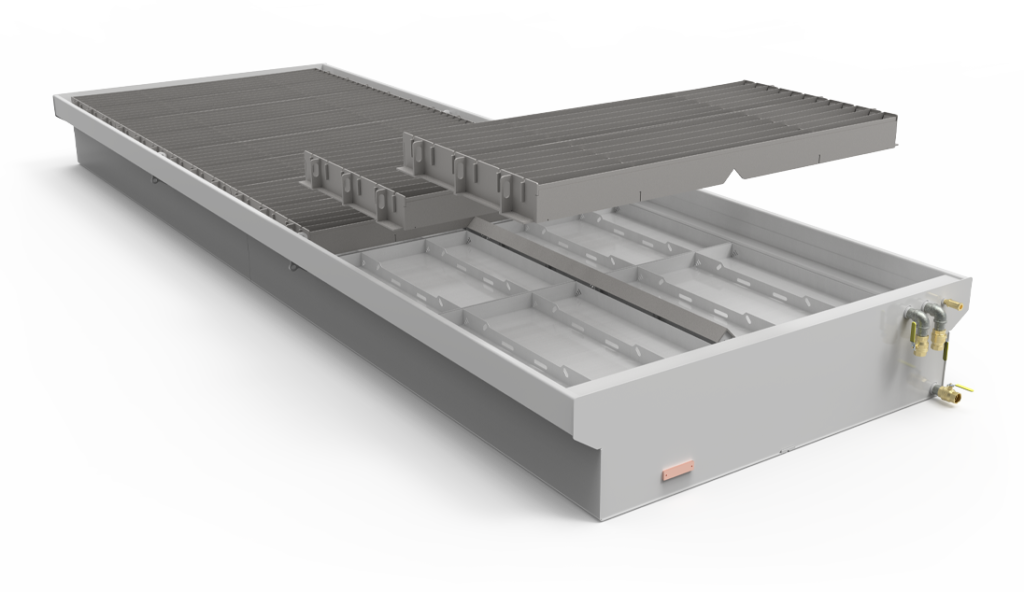

Water Table Design for KANO CNC Plasma Cutting Table 2

Heavy-Duty. Value-Priced.

Park Industries® water cutting tables are designed for heavy-duty production. They offer cutting with high definition plasma to 2” thick and oxy-fuel cutting to 4”. Our water tables feature the ability to adjust water level with pneumatic valves that either add or remove air inside a sealed lower steel chamber called a “bladder”. Our tables include removable slat frames to allow the frame and slats to be quickly replaced as assemblies. Removable slag trays are located below the slat frames to allow the slag in the table to be quickly dumped when table cleaning is required.

Data Sheets

Table Features:

Fabricated from A36 1/4” steel
Table leak and pressure tested before shipment
Manual ball valves for water level control
Removable slat frames with individual slats
Removable slag trays

TABLE SIZE OFFERINGS

Cutting Widths:

5 ft
6 ft
8 ft
10 ft

Cutting Lengths:

10 ft
12 ft
24 ft

ADVANTAGES & DISADVANTAGES OF WATER TABLES

ADVANTAGES	DISADVANTAGES
Lowest cost style of cutting table	Cutting aluminum on a table with an air bladder poses an extreme explosion hazard
Good fume control when the water level is near the bottom of the plate	Water on the plate and machine components can cause them to rust
Best table design when water is used as the shield flow for cutting stainless	Reduced cutting speed when water level is near the bottom of the plate
Reduces plate warpage	Increased dross possible if water level is near the bottom of the plate
