KANO™ HD is a true unitized CNC cutting machine. It delivers accuracy, productivity and reliability. Machine accuracy is built-in. Available in six machine sizes (widths of 6, 8, and 10 ft - lengths of 12 or 24 ft), it's designed to deliver premium results when configured with a Hypertherm® EDGE Connect CNC, a Hypertherm® HD plasma system (XPR170 or XPR300), an optional oxy-fuel cutting torch and your choice of three cutting table styles. The completely American-made KANO™ is built like a tank and backed by the industry's best customer service.
-
2000 IPM
RAPID TRAVERSE -
6 MODELS
AVAILABLE -
3 TABLE
STYLES
Media
Precision Accuracy
Industrial Build
Up to 24 Ft Long
Operator Friendly
EDGE Connect CNC
TracKlean Touchscreen Controls
The New Generation of Plasma Tables
Easy Part Retrieval
Bird's Eye View
XPR170 from Hypertherm
Water Table Option
Tucked Rails
TracKlean Self-Cleaning Table
Servo Motor
Magnetic Torch Mount
Base and Tucked Rails
Unitized Machine Frame
Zoned Down Air Draft Table Option
Finished Cut Part
Finished Cuts
Finished Cut Part
KANO HD in Production
Industrial Plasma Cutting Table
Finished Cut Part
Finished Cut Part
Finished Cut Part
Finished Cut Part
KANO HD in Production
Self Cleaning Table (Slats Removed)
Mobile Operator Station
KANO HD
Finished Cut Part
On Screen Camera Live Cutting Feed
Hypertherm XPR 300
Submit Photo
More Than A Machine
Precision plasma table, built to last and paired with unmatched 24/7 service.
Experience the Precision
KANO™ HD is a true unitized CNC cutting machine. It delivers accuracy, productivity and reliability. Machine accuracy is built-in. We do not use shims or jack screws to adjust machine components into straightness. Park Industries® uses laser interferometers to prove it. Non-compensated motion accuracy of KANO™ HD is measured per ISO 230-2 over a 60” x 60” area. Bidirectional Positional Accuracy is +/- .004” and Bidirectional Repeatability is +/- .001”. The KANO™ HD has the ability to accelerate from 0 to 2,000 IPM in 0.5 seconds. This CNC Plasma Cutting Table is more than just a machine. It’s a Fabricator’s Dream
Plasma Cutting's New Leader
Park Industries® has been building highly precise and accurate machines since 1953. We specialize in building robust machinery and delivering the best customer service in industry. Over 70 of Park Industries® associates are designated in customer support roles to ensure that customers receive the support they need, 24 hours a day, 7 days per week.
Industrial Grade
The build and industrial grade quality of this plasma machine separates the KANO HD from the competition. Completely American made in Park Industries’ state-of-the-art manufacturing facility in St. Cloud, MN – it truly is built like a tank.
Standard Features
- Designed to ISO 230-2 machine tool standard (laser verified)
- True unitized machine frame with heavy duty leveling pads
- (1) AC Servo driven torch lifter (plasma or oxy-fuel)
- Magnetic collision mount for torch
- Tools on tool carriage: 2 maximum (Plasma, Oxy-Fuel, or Mechanical Marker)
- Mobile Operator Station
- Hypertherm EDGE Connect CNC control with Win10 OS
- AC servos drives with absolute encoders
- Near-zero backlash planetary gear heads
- Linear ways on all drive axes
- Helical rack and pinion drives
- Dual Photo-eye E-stops
Machine Options
- Oxy-fuel machine cutting torches
- Digital oxy-fuel gas manifold with embedded CNC support
- Heat shield under gantry beam
- 2nd AC Servo driven torch lifter with magnetic collision mount
- Cross-hair plate alignment laser
- Digital on-screen camera
- Extra torch heads for plasma systems
- Plasma consumables and consumable agreements
- Plasma arc shield
- Regulators for plasma or oxy-fuel supply gases
- Flash back arrestors (required for some XPR systems)
- Air pressure booster for plasma systems
- Air drier system for plasma systems
- Power supply stand for HPRXD & XPR plasma systems
- Gas console stand for plasma systems
- CAD/CAM programming software
Key Number
2,000 IPM (Rapid Traverse Speed)
Select the feature you'd like to learn about or slide through them below.
UNITIZED MACHINE FRAME
KANO™ HD machine frames are a true unitized design. They are not bolted together. The machine frame is a single fabricated steel weldment that is stress relieved and machined on a 5-axis mill. Park Industries® large mills allow all mating surfaces to be machined in a single setup, including the 10 ft. wide X 24 ft. long bases.
POWERFUL DRIVE SYSTEM
Powerful Drive System KANO™ HD is configured with powerful AC servo drives that deliver rapid traverse speed of 2,000 IPM at 160 mG acceleration in 0.5 seconds. Hardened & ground helical pinion gears, fixed pinion gear engagement and near zero backlash gear heads ensure premium performance.
TracKlean™ Self-Cleaning Table Design

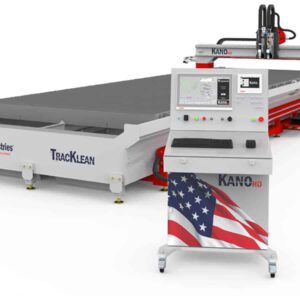

Tired of fishing out fallen parts from underneath the table? Cleaning the table a pain? The TracKlean self-cleaning cutting table, offered exclusively on the KANO™ HD, makes life easier. Retrieve a fallen part in under 10 seconds or clean the table in under 60 seconds with the push of a button. Water and Down Draft Air Tables styles also available.
INDEPENDENT CUTTING TABLES
The KANO™ HD machine frames are not affected by thermal effects of cutting processes because cutting tables are independent of the machine frame. This unique approach maximizes machine accuracy and performance. Choose the table style that is best for your application - water table, zoned down draft air table or TracKlean™ self-cleaning air table.
TUCKED RAILS
KANO™ HD cutting tables extend over the machine frame to cover the linear ways and gear rack to eliminate the possibility of damage during loading and unloading the table. Also, the gear rack teeth are facing down.
High Definition Plasma
Whether you need to cut thin sheet metal parts, precision non-ferrous shapes, or large pieces from heavy steel plate, the KANO will be configured with the right Hypertherm system to get the job done right. HPRXD and XPR Systems available.
MOBILE OPERATOR STATION
The KANO™ HD Mobile Operator Station (MOS) is tethered to the front left or right of the machine by a heavy-duty flexible plastic conduit. The MOS is configured with the Hypertherm® EDGE Connect CNC with Microsoft® Win10 OS. It is customized with iPark™ SoftOpCon, ProNest® CNC CAM software and embedded expertise from Hypertherm® SureCut™ technology.
TracKlean™ PC Control
A 7” touchscreen, powered by a PC mounted inside the Mobile Operator Station, controls the functionality of the optional TracKlean™ self-cleaning air table.
MOUNTED DIGITAL CAMERA (OPTIONAL)

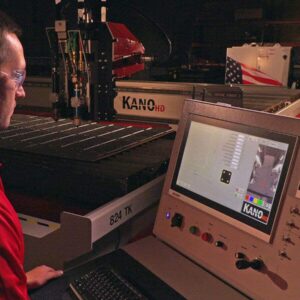

The optional on-screen camera is mounted above the torches and enables the machine operator to easily and accurately align a program to any plate corner while watching the CNC control screen for maximum efficiency.
Steel Beam & End Trucks

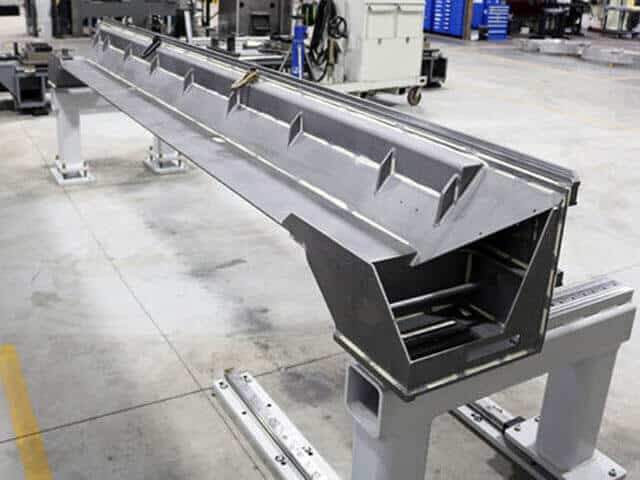

No aluminum in the KANO™ HD. The KANO™ HD beam and end trucks are fabricated from steel plates with added internal steel reinforcements. Linear ways and gear rack are attached directly to precision machined surfaces. Clearance between the bottom of the gantry and the table slats is a full 10” (8” with optional head shield installed)
Technical Info
Cutting Widths
6 ft, 8 ft, or 10 ft
Cutting Lengths
12 ft or 24 ft
Machine Total Height
93” (+/- 0-2”)
Table Style Options
Water Table, Zoned Down Draft Air Table, TracKlean with AirSweep
Plasma Systems

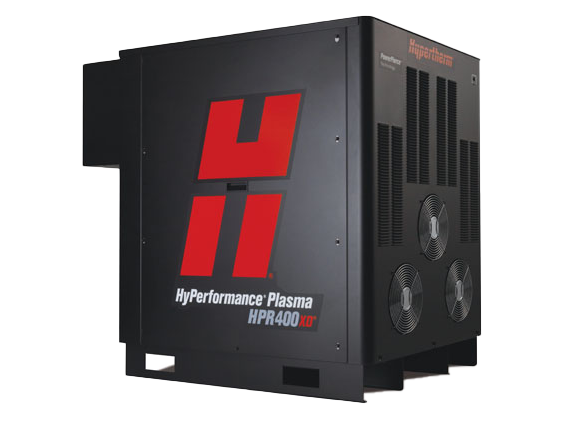

Hypertherm® XPR170, XPR300, HPR400XD
Bi-Directional Positional Accuracy per ISO 230-2 (60” x 60” area, laser verified)
+/- .004 Non-compensated
Bi-Directional Repeatability per ISO 230-2 (60” x 60” area, laser verified)
+/- .001” Non-compensated
Acceleration (Max)
61.7 inch/sec2 (160 mG) in 0.5 seconds
Machine Speed (Max)
2000" per minute
Machine Weight
Min: 12,000 lbs ( 6' x 12' model) - Max: 25,000 lbs (10' x 24' model)
Electrical Requirements (KANO w/ TracKlean Table)
480 volt, 3 phase, 60 Hz, 33.3 FLA
Electrical Requirements (KANO w/ Water or Air Table)
480 volt, 3 phase, 60 Hz, 28.2 FLA
Electrical Requirements (Plasma System Only)
Plasma system dependent, refer to mfg. manual
PDF Datasheets:
- Air Preparation Assembly
- AirSweep Exhaust System
- Cable Activated E-Stops
- Channel Cable Protectors
- Compressed Air Pressure Booster
- Cross-Hair Laser Plate Alignment Tool
- Cutting Table Slat Frames
- Digital Oxy-Fuel Gas Manifold
- Encoders – Incremental vs Absolute
- Equipment Stands
- FIT + Three Starter Kit | Propane – 101211
- Flashback Arrestors for Plasma Systems
- Harris 98-6E Cutting Torch
- Harris 98-6F Cutting Torch
- Harris Bevel & Pre-heat Attachment
- Hypertherm Sensor THC Software
- Hypertherm Sure Cut Technology
- IHT FIT + Three Cutting Torch
- Input Voltage Transformers
- Machine Tool Accuracy (6, 8 + 10 ft KANO)
- Magnetic Torch Collision Mount
- Mobile Operator Station
- On-screen Camera
- Plasma Consumables & Torch Heads
- Pressure Regulators for Oxy-Fuel Cutting
- Pressure Regulators for Plasma Systems

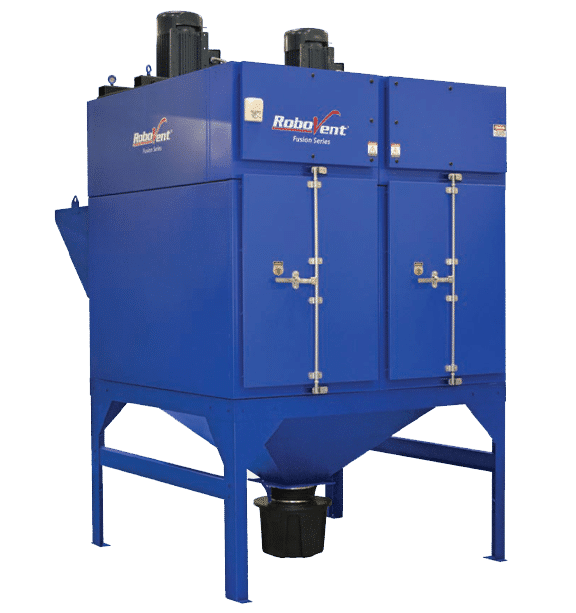

- RoboVent Collector DT4-6-3700-15 (6 & 8 ft KANO)
